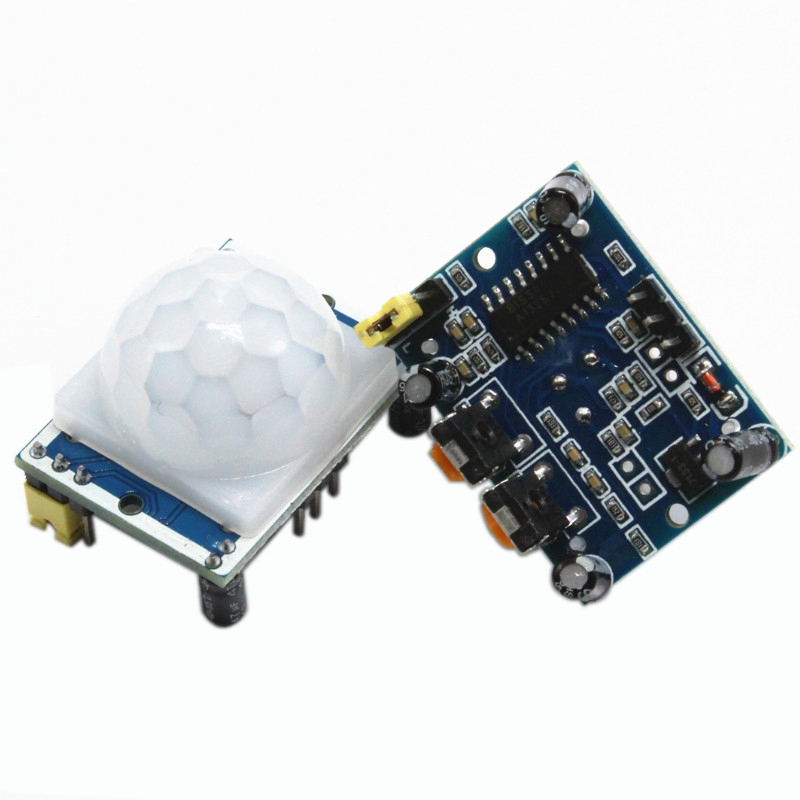

แผงโมดูลHc - Sr 501 Ir Pyroelectric Pir เซ็นเซอร์ตรวจจับความเคลื่อนไหว
4.9
ขายแล้ว 1 ชิ้น
0 ครั้ง
฿28
฿96
-71%
isinwei.th
แบรนด์:
NoBrand
ซื้อที่ Shopee
คุณจะถูกนำไปยัง Shopee
รายละเอียดสินค้า
Product Type: HC-SR501 Body Sensor Module
Operating voltage range: DC 4.5-20V
Quiescent Current: <50uA
Level output: High 3.3 V /Low 0V
Trigger: L can not be repeated trigger/H can be repeated trigger(Default repeated trigger)
Delay time: 5-200S(adjustable) the range is (0.xx second to tens of second)
Block time: 2.5S(default)Can be made a range(0.xx to tens of seconds
Board Dimensions: 32mm*24mm
Angle Sensor: <100 ° cone angle
Operation Temp: -15-+70 degrees
Lens size sensor: Diameter:23mm(Default)
Note: adjust the distance potentiometer clockwise rotation, the induction distance increases (about 7 meters), on the contrary, the induction distance is reduced (about 3 meters).
Adjust the delay potentiometer clockwise, induction delay lengthened (about 300S), on the other hand, shorten the induction delay (about 5S).
External schematic and typical applications
#HCSR501 #Sensor #Module
Operating voltage range: DC 4.5-20V
Quiescent Current: <50uA
Level output: High 3.3 V /Low 0V
Trigger: L can not be repeated trigger/H can be repeated trigger(Default repeated trigger)
Delay time: 5-200S(adjustable) the range is (0.xx second to tens of second)
Block time: 2.5S(default)Can be made a range(0.xx to tens of seconds
Board Dimensions: 32mm*24mm
Angle Sensor: <100 ° cone angle
Operation Temp: -15-+70 degrees
Lens size sensor: Diameter:23mm(Default)
Note: adjust the distance potentiometer clockwise rotation, the induction distance increases (about 7 meters), on the contrary, the induction distance is reduced (about 3 meters).
Adjust the delay potentiometer clockwise, induction delay lengthened (about 300S), on the other hand, shorten the induction delay (about 5S).
External schematic and typical applications
#HCSR501 #Sensor #Module
