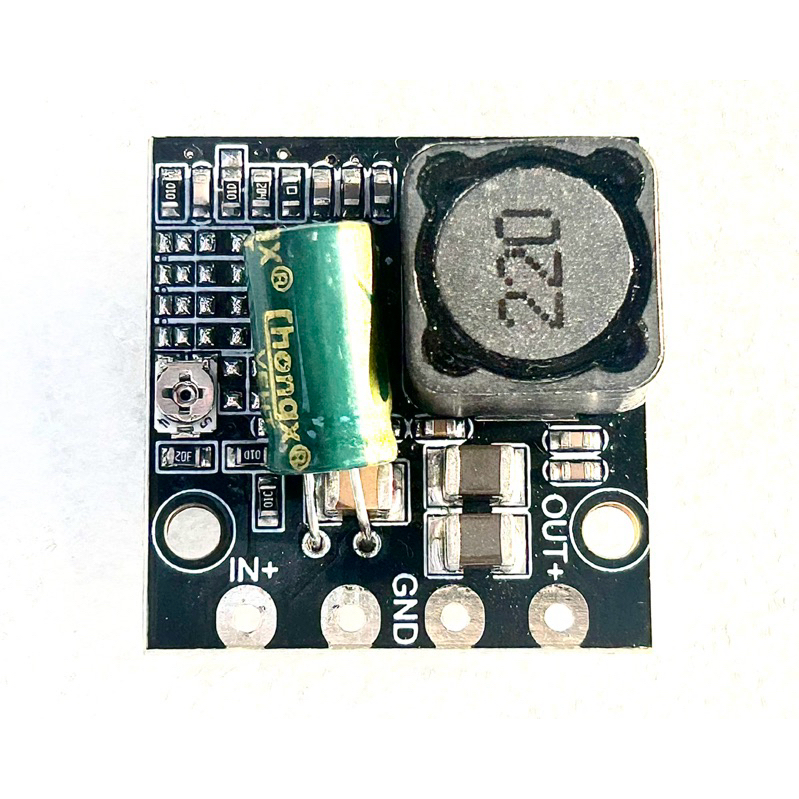

DC-DC Step Down Module 60V 3A To3-32V Buck Converter Adjustable Voltage Regulator

Overview Reviews Description Recommended iter
60V 3A vehicle level power module
Specification: Long model: Fixed voltage 3.3V/5V/
12V/24V
Long model: adjustable voltage 2-34V, adjustable
Square style: 60V 3A short circuit setting output support
3.3V/5V/12V/24V
Square style: 60V 3A adjustable output 3-32V adjustable
Ultra low 20uA static current
Efficient synchronous voltage reduction, current up to
3A, low ripple
Input voltage range: 4.2V-60V, but if the current is high,
it should be higher than the output voltage by more than
1V
Output voltage range: 1V to VIN (leave 1V voltage
difference when the current is high)
All adopt high-frequency, low internal resistance,
long life capacitors
Configure soft start and output voltage tracking
capabilities
Automatically switched bypass linear power supply,
improving high voltage and light load efficiency
