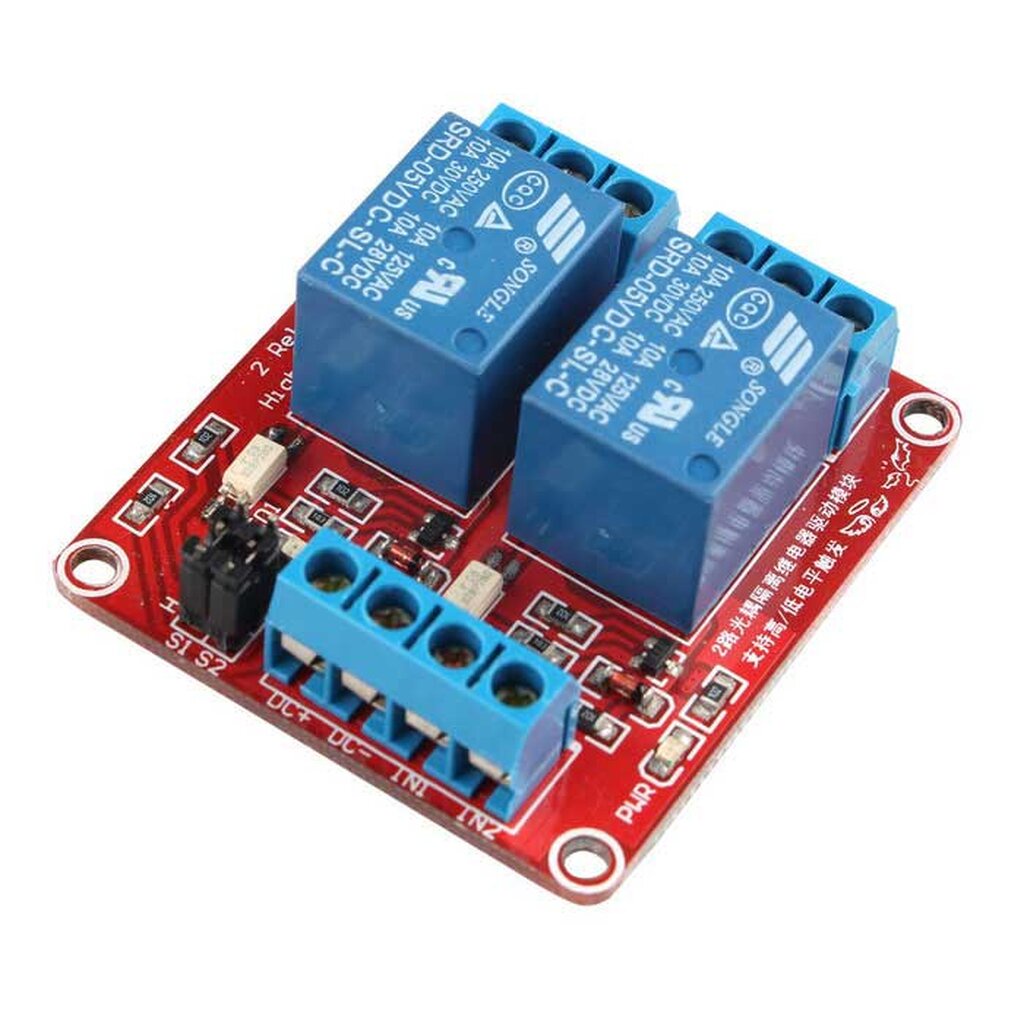

2 Channel Relay Module With Optocoupler Support High Low Level Trigger 5V

2 Channel Relay Module With Optocoupler Support High Low Level Trigger 5V

รีเลย์ 2 ช่อง ใช้ไฟควบคุม 5V สามารถตัดต่อไฟสูงสุด AC 250V/10A, DC 30V/10A โมดูลรีเลย์นี้สามารถทำงานได้ทั้งแบบ High และ Low Trigger โดยเลือก Jumper

ข้อมูลเพิ่มเติม 2 Channel Relay Module With Optocoupler Support High Low Level Trigger 5V

1, the module uses genuine quality relay, normally open interfaces Maximum load: AC 250V / 10A, DC 30V /. 10A;
2, using SMD optocoupler isolation, driving ability, stable performance; trigger current 5mA;
3, module voltage 5V
4, the module can be set to a high level or low-level triggered by jumper;
5, fault-tolerant design, even if the control line is broken, the relay will not operate;
6, power indicator (green), relay state indicator (red)
7, user-friendly interface design, all interfaces are available through the wiring terminal direct connection leads, very convenient
8, module size: 50mm * 41mm * 18.5mm (L * W * high)
9 with four mounting bolts holes, hole 3.1mm, 44.5mm * 35.5mm pitch
