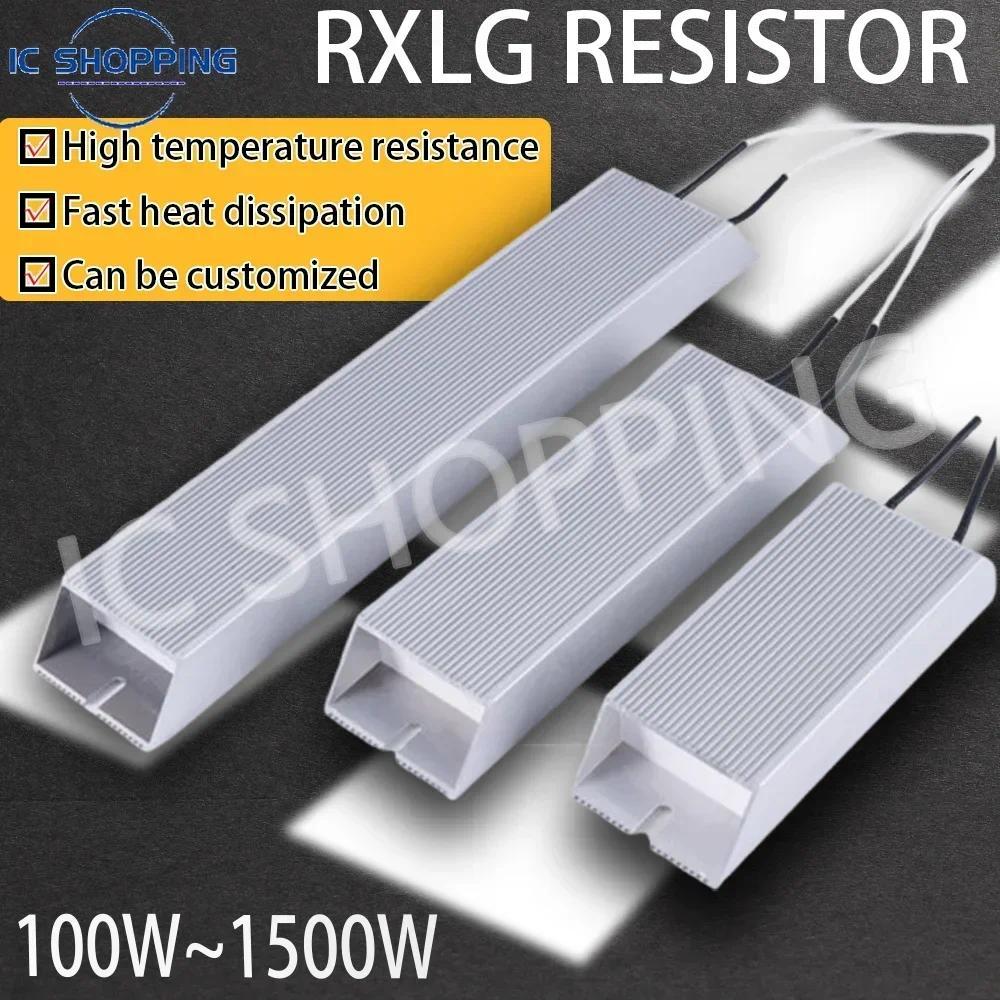

RXLG Aluminum Shell Braking Resistor 100W 150W 200W 300 400W 500W 600W 800W 1000W 1500W 10 20 30 40 50 75 100 150 300Ohm

If you need a resistor with a higher power rating, please contact the customer service and inform them. Thank you.

Wattage
Product Link
Simplified Title
100W-800W
Link 3
RXLG Aluminum Shell Braking Resistor 100W-800W 10R-300R
1000W-1500W
Link 2
RXLG Aluminum Shell Braking Resistor 1000W-1500W 10R-400R
2000W-3000W
Link 4
RXLG Aluminum Shell Braking Resistor 2000W-3000W 10R-100R
4000W-5000W
Link 6
RXLG Aluminum Shell Braking Resistor 4000W-5000W 10R-100R
6000W
Link 5
RXLG Aluminum Shell Braking Resistor 6000W 10R-100R
10kW
Link 1
RXLG Aluminum Shell Braking Resistor 10kW 10R-100R
FD Power (kW)
Recommended Brake Resistors
0.4 kW
• 60 W, 200 Ω
• 80 W, 200 Ω
0.75 kW
• 100 W, 200 Ω
• 80 W, 750 Ω
1.5 kW
• 300 W, 100 Ω
• 300 W, 400 Ω
2.2 kW
• 300 W, 70 Ω
• 300 W, 250 Ω
3.7 kW
• 300 W, 50 Ω
• 400 W, 150 Ω
5.5 kW
• 500 W, 100 Ω
• 500 W, 150 Ω
• 500 W, 200 Ω
7.5 kW
• 1000 W, 75 Ω
• 1000 W, 50 Ω
• 1000 W, 30 Ω
• 1000 W, 20 Ω
• 1000 W, 100 Ω
11 kW
• 1000 W, 50 Ω
15 kW
• 1500 W, 40 Ω
18.5 kW
• 4800 W, 32 Ω
If you need Other resistance value, you can buy "Other Ohm", and then fill in the required resistance value in the order message remarks, the delivery period is generally about 5~7 days, such as the delivery period is extended, customer service will be notified separately!
Power (W)
Terminal
Wire
L (mm)
P (mm)
W (mm)
H (mm)
50
M6
400mm 1.5 mm²
100
85
40
20
80
M6
400mm 1.5 mm²
100
85
40
20
100
M6
400mm 1.5 mm²
140
125
40
20
120
M6
400mm 1.5 mm²
165
150
40
20
150
M6
400mm 1.5 mm²
165
150
40
20
200
M6
400mm 1.5 mm²
165
145
60
30
300
M6
400mm 1.5 mm²
215
195
60
30
400
M6
400mm 1.5 mm²
245
225
60
30
500
M6
400mm 1.5 mm²
245
225
60
30
600
M6
400mm 2.5 mm²
265
245
60
30
800
M6
400mm 2.5 mm²
330
310
60
30
1000
M6
400mm 2.5 mm²
330
310
60
30
1200
M6
400mm 2.5 mm²
420
400
60
30
1500
M6
400mm 2.5 mm²
420
400
60
30
2000
M6
400mm 4 mm²
450
430
50
107
2500
M6
400mm 4 mm²
450
430
50
107
3000
M6
400mm 4 mm²
550
530
50
107
4000
M6
400mm 4 mm²
550
530
50
107
5000
M6
400mm 4 mm²
550
530
50
107
6000
M6
400mm 4 mm²
700
680
50
107
7000
M6
400mm 4 mm²
700
680
50
107
8000
M6
400mm 6 mm²
700
680
50
107
10000
M6
400mm 6 mm²
1000
980
50
107
Height * width * length
100W 20＊40＊140
150W 20＊40＊180
200W 30＊60＊165
300W 30＊60＊215
500W30＊60＊245
800W30＊60＊330
1000W 30＊60＊330
(50＊100＊300)
1500W30＊60＊420
(50＊100＊400)
2000W50＊100＊450
3000W 50＊100＊550
5000W 50*100*700
6000W50*100*700
7000W50*100*900
