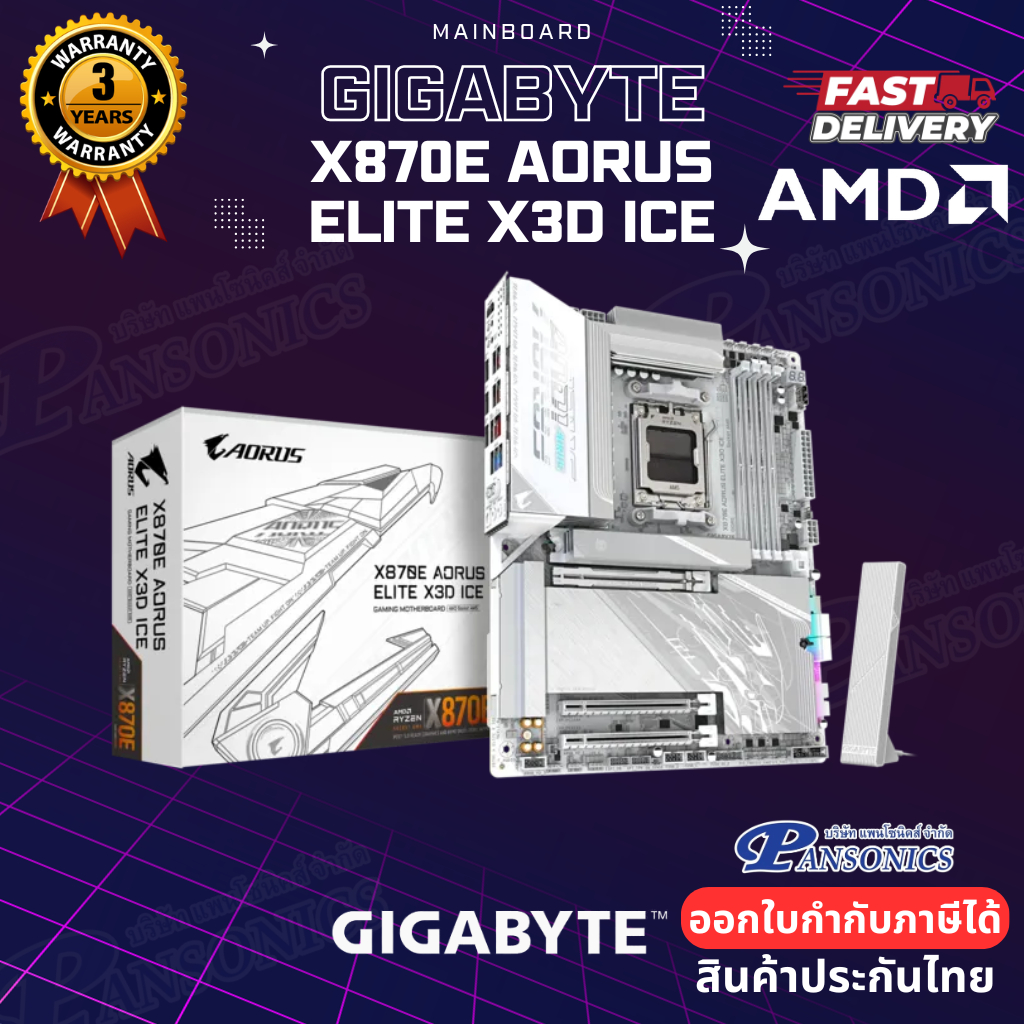

MAINBOARD GIGABYTE X870E AORUS ELITE X3D ICE WIFI7 (SOCKET AM5 DDR5 ATX) (รับประกัน3ปี)

Processor
AMD Socket AM5, support for:
AMD Ryzen™ 9000 Series Processors/
AMD Ryzen™ 8000 Series Processors/
AMD Ryzen™ 7000 Series Processors
(Go to GIGABYTE's website for the latest CPU support list.)
Chipset
AMD X870E
Memory
Support for DDR5 9000(O.C) / 8800(O.C) / 8600(O.C) /
8400(O.C) / 8200(O.C.)/ 8000(O.C) / 7800(O.C) / 7600(O.C) / 7200(O.C.) /
7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C) / 6200(O.C) / 6000(O.C) /
5600(O.C) / 5200 / 4800 MT/s memory modules.
4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single
DIMM capacity) of system memory
Dual channel memory architecture
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory
modules
Support for AMD EXtended Profiles for Overclocking (AMD
EXPO™) and Extreme Memory Profile (XMP) memory modules
(The CPU and memory configuration may affect the supported
memory types, data rate (speed), and number of DRAM modules, please refer to
"Memory Support List" on GIGABYTE's website for more information.)
Onboard Graphics
Integrated Graphics Processor with AMD Radeon™ Graphics
support+ASMedia USB4® Controller:
- 2 x USB4® USB Type-C® ports, supporting USB4 and
DisplayPort video outputs and a maximum resolution of 3840x2160@240 Hz
* Support for DisplayPort 1.4 version and HDR.
Integrated Graphics Processor with AMD Radeon™ Graphics
support:
- 1 x HDMI port, supporting a maximum resolution of
4096x2160@60 Hz
* Support for HDMI 2.1 version, HDCP 2.3, and HDR.
** Support for native HDMI 2.1 TMDS compatible ports.
 - 1 x front HDMI port, supporting a maximum resolution of
1920x1080@30 Hz
* Support for HDMI 1.4 version
(Graphics specifications may vary depending on CPU support.)
Audio
Realtek® ALC1220 CODEC
* The back panel line out jack supports DSD audio.
  High Definition Audio
2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using
the audio software. To configure 7.1-channel audio, access the audio software
for audio settings.
Support for S/PDIF Out
LAN
Realtek® 5GbE LAN chip (5 Gbps/2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module
Qualcomm® Wi-Fi 7 QCNCM865
- 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz
carrier frequency bands
- BLUETOOTH 5.4
- Support for 11be 320MHz wireless standard
(Actual data rate may vary depending on environment and
equipment.)
* Wi-Fi 7 features require Windows 11 SV3 to function
properly. (There is no support driver for Windows 10.)
** Wi-Fi 7 channels on 6 GHz band availability depends on
individual country's regulations.
***Bluetooth version may change with updates. See the Wi-Fi
chip vendor's website for details
Expansion Slots
1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16
mode
AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0
x8 mode
AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0
x4 mode
* The PCIEX16 slot can only support a graphics card or an
NVMe SSD. If only one graphics card is to be installed, be sure to install it
in the PCIEX16 slot.
 Chipset:
- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running
at x4 (PCIEX4)
- 1 x PCI Express x16 slot, supporting PCIe 3.0 and running
at x2 (PCIEX2)
IDE ATA
1 x M.2 connector (M2A_CPU), integrated in the CPU,
supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:
AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0
x4/x2 SSDs
AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0
x4/x2 SSDs
AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0
x4/x2 SSDs
1 x M.2 connector (M2B_CPU), integrated in the CPU,
supporting Socket 3, M key, type 22110/2280 SSDs:
AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0
x4/x2 SSDs
* The M2B_CPU connector shares bandwidth with the ASMedia
USB4® controller. When a device is installed in the M2B_CPU connector, both the
M2B_CPU connector and the USB4 port supported by the ASMedia USB4® controller
operate at up to x2 bandwidth. When using an AMD Ryzen™ 8000 Series-Phoenix 1
or Phoenix 2 processor, the USB4 port supported by the ASMedia USB4® controller
operates at up to x2 bandwidth, and the M2B_CPU connector becomes unavailable.
2 x M.2 connectors (M2C_SB, M2D_SB), integrated in the
Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs
4 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD
storage devices
* RAID 5 is only available on AMD Ryzen™ 9000 Series
Processors.
 RAID 0, RAID 1, and RAID 10 support for SATA storage devices
USB
CPU+ASMedia USB4® controller:
- 2 x USB4® USB Type-C® ports on the back panel
CPU:
- 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2
support
Chipset+USB 3.2 Gen 1 Hub:
