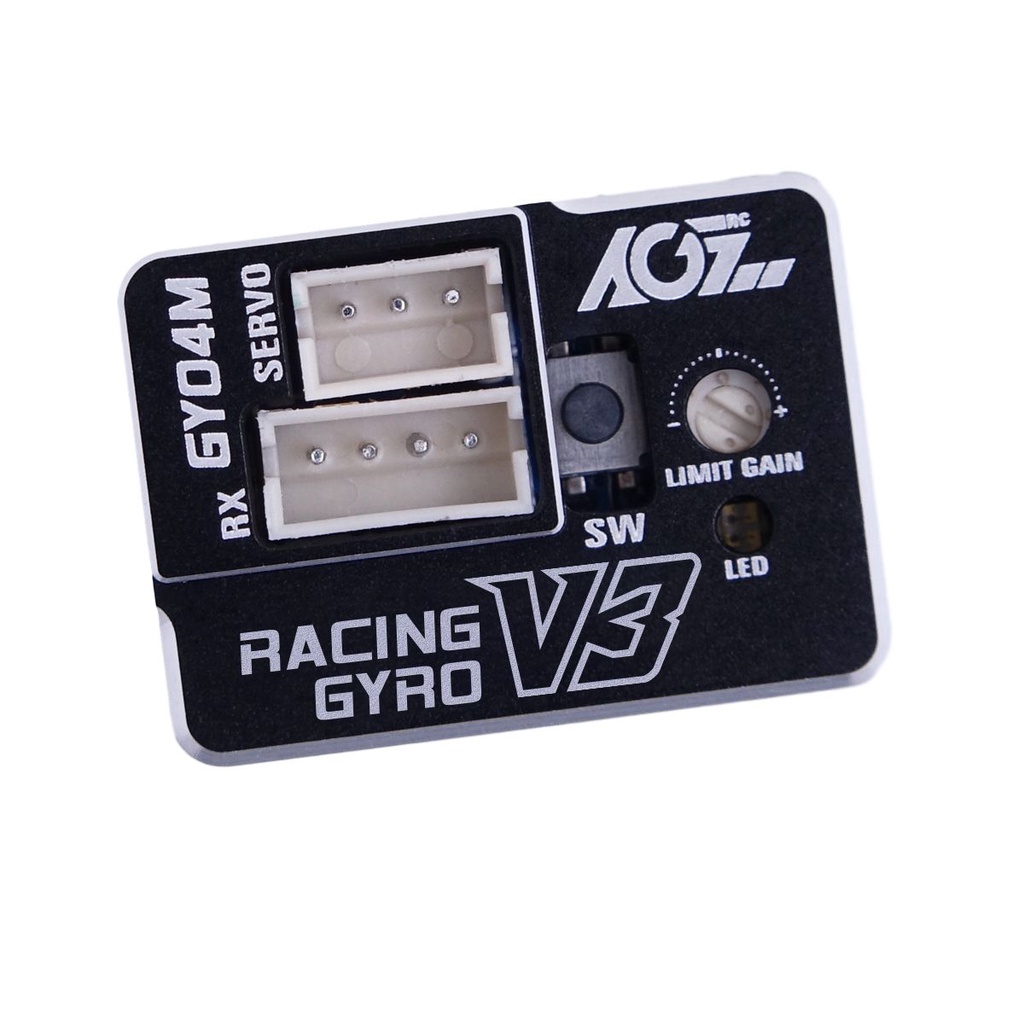

AGFrc GY04M V3 .5 Upgrade Version Aluminum Case Dual Gain Mini Size Steering Tuned Gyro For RC Drift Car

Item:GY04M V3.5

Weight:4g

Voltage:3.7-8.4V

Application:RC Mini Z Car, 1/10 Competition Drifting Car
Detail


Description

Gyros which helps drivers keep their car in a straight line. Hold that perfect drift angle combined with high speeds with Gyro pre-loaded with a customized firmware for Drifting. Make corrective steering adjustment for RC cars! Upgrade full aluminum case for better heat resistance and impact resistance.



Feature

◆ CNC Aluminum Alloy for High Efficiency Cooling and Well-Protection

◆ Reliable and High-Performance Gyroscope Sensor

◆ Simple and Quick Installation

◆ High Voltage 2s Lipo Capable

◆ Super Light Weight and Compact Size

◆ Easy Adjustment With Dual Gain Mode

◆ Ideal for Mini Size RC Competition Drifting



Specification

◆ Item Name: GY04M V3.5

◆ Shell Material：AL6061

◆ Weight：4g
◆ Dimension：21*15*8.8mm
◆ Operating Voltage：3.7～8.4V
◆ Current Drain：20mA/6V

◆ Dual Gain Mode: Normal/ Sensitive Mode

◆ Operating temperature: -10℃+50℃

◆ Control System: PID Control System

◆ Output Signal: 1520uS(50Hz/333Hz) / Sanwa SSR

◆ Input Signal: PWM(50-333Hz) / Sanwa SHR/SSR / Futaba S.Bus

◆ Input & Output Plug: JST1.5mm(attached the signal input cable to connect with receiver)
