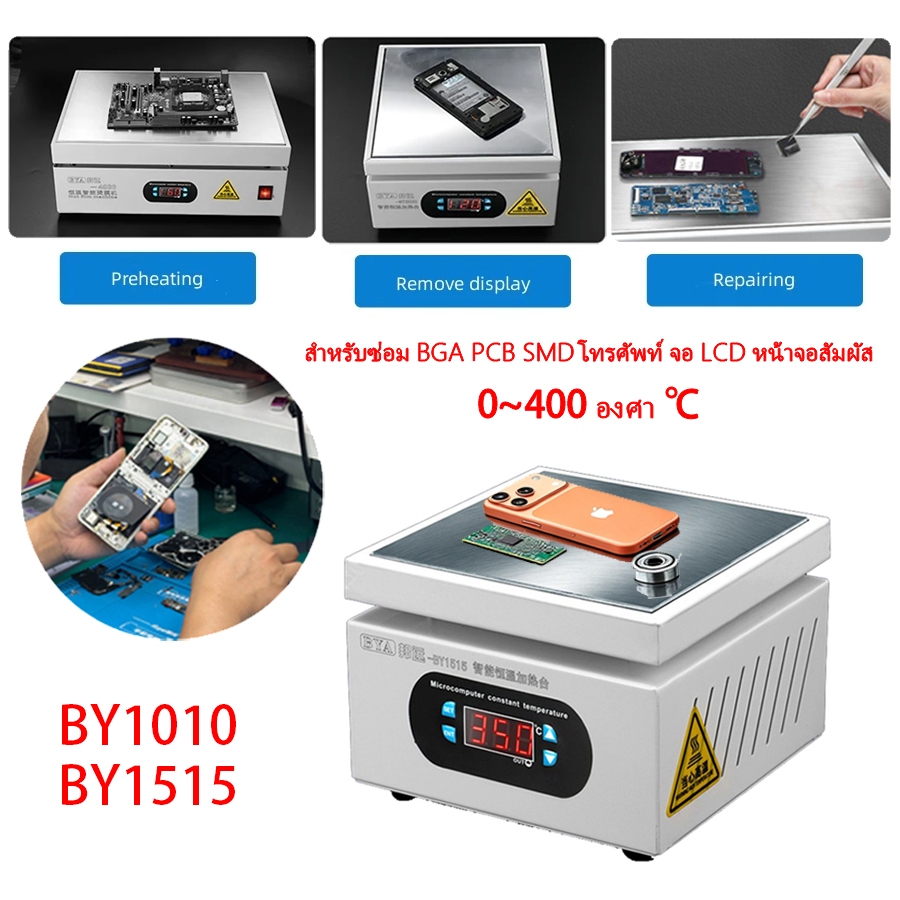

แผ่นทําความร้อนไฟฟ้า อลูมิเนียม สำหรับซ่อมมือถือ ถอดชิป อบบอร์ด รีบอล BGA PTC Heating Plate ควบคุมอุณหภูมิดิจิตอล ปลอดภั

This temperature heating station adopts heating plate, brushed plate processing, with high thermal conductivity, heat uniformity, fast heating, high temperature without deformation. Simple structure body with an intuitive digital display design for space saving and easy operation, which can provide stable heating performance. Accurate and constant temperature is achieved through the use of a microcomputer chip, intelligent temperature control, quick and uniform heating. Suitable for mold core preheating, a variety of metal materials, BGA ball planting, LED lamp bead welding, maintenance of electronic circuit board repairs preheating, melting glue, cellphone screen removal, laboratory reagent heating, heat sealing film packaging, and so on.

Features:
Premium Materials: Adopting heating plate, brushed plate processing, with high thermal conductivity, heat uniformity, fast heating, high temperature without deformation.
Intelligent Constant Temperature Heating Table: Simple structure body with an intuitive digital display design for space saving and easy operation, which can provide stable heating performance. It saves energy consumption and heating time.
Intelligent Temperature Control: Accurate and constant temperature is achieved through the use of a microcomputer chip, intelligent temperature control, quick and uniform heating.
Wrap-around Design: The heating table is surrounded by a wrap-around design, heat insulation, and anti-scald, preventing accidental touching and scalding while working, safer to use.
Heat Dissipation: Three-dimensional heat dissipation, fanless design, and the left and right holes speed up the air convection to achieve the perfect heat dissipation effect, prolonging the service time of the heating core.
Insulated Socket: Three-core power cord socket is designed with insulated material for anti-leakage. With a fuse tube beside the socket, anti-burning, and protects the circuit heating core, easy to replace.
Separate Power Cord: Thickened three-core national standard power cord, the three-pronged plug is not easy to fall off, anti-static, effectively eliminates inductance, in line with the use of high-power machinery.
Multi-purpose Design: Suitable for mold core preheating, a variety of metal materials, BGA ball planting, LED lamp bead welding, maintenance of electronic circuit board repairs preheating, melting glue, cellphone screen removal, laboratory reagent heating, heat sealing film packaging, and so on.

Specifications:
Name: Heating Station
Material:
Model: BY1010, BY1515, BY2020 (optional)
BY1010:
Heating plate size: 100*100mm / 3.94 * 3.94in
Temperature ranges: 0-400℃
Machine power: 350W
BY1515:
Heating plate size: 150*150mm / 5.91 * 5.91in
Temperature ranges: 0-400℃
Machine power: 500W
BY2020:
Heating plate size: 200*200mm / 7.87 * 7.87in
Temperature ranges: 0-400℃
Machine power: 700W
