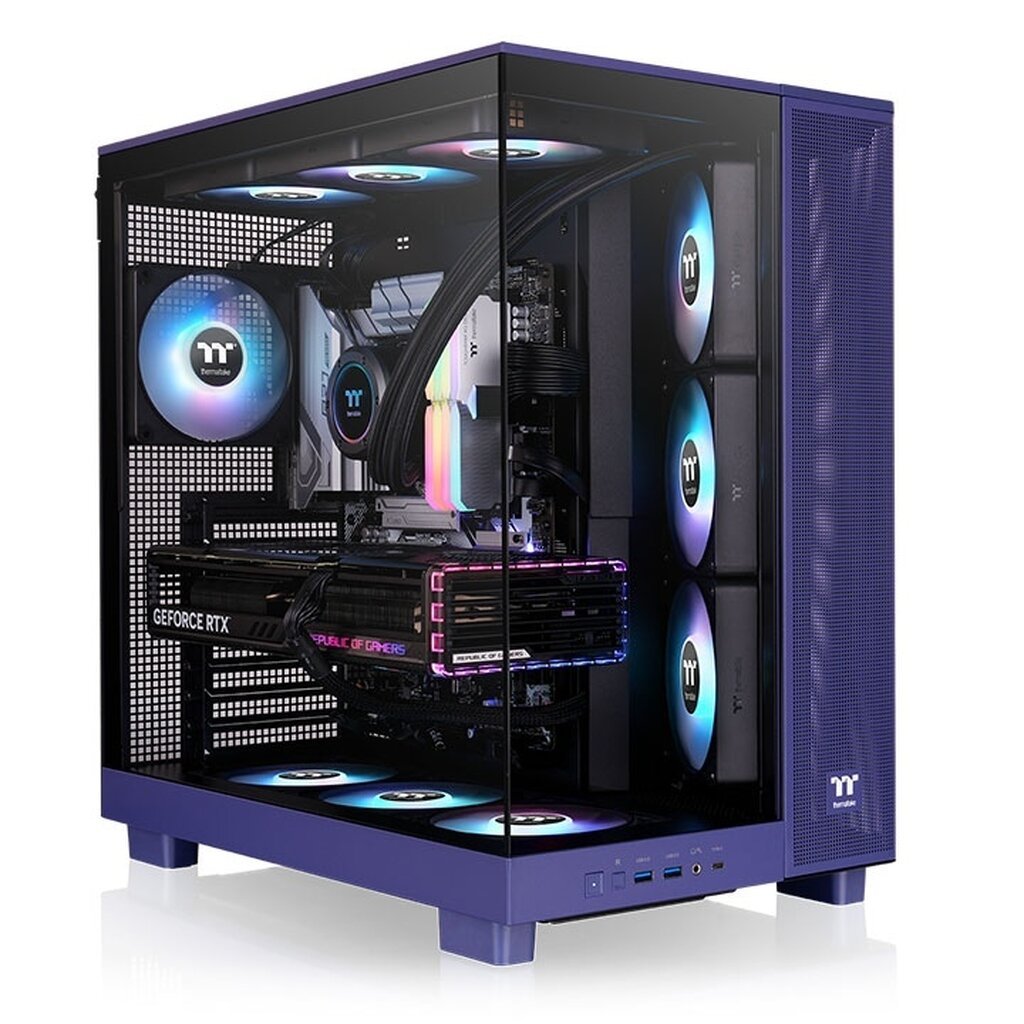

Case ThermaltakeView 380 XL TG ARGB Future Dusk (CA-11E-00MNWN-00) Dual-chamber ATX Mid Tower

View 380 XL TG ARGB Future Dusk Mid Tower Chassis
The View 380 XL TG ARGB Future Dusk Mid Tower Chassis is a dual-chamber ATX case with Hidden-Connector Motherboard support, four 120mm Hydraulic Bearing ARGB Lite fans, and space for a 360mm radiator at both the top and motherboard side. It supports up to ten 120mm fans and features a built-in GPU holder, front I/O ports, a recessed bottom compartment, and an angled motherboard side design, offering users enhanced flexibility for their ideal build.

P/N
CA-11E-00MNWN-00
Series
ViewModel
View 380 XL TG ARGB
Dimension (H x W x D)
471 x 288 x 469 mm
(18.54 x 11.34 x 18.46 inch)PANEL
4mm Tempered Glass x 2
Color
Future DuskMATERIAL
SPCC
COOLING SYSTEM
Right(intake): 120 x 120 x 25 mm ARGB Lite Reverse fan (1000rpm, 21.9 dBA) x 3

Rear(exhaust): 120 x 120 x 25 mm ARGB Lite fan (1000rpm, 22.3 dBA) x 1Drive Bays
1 x 3.5”, 2 x 2.5” or 3 x 2.5”
EXPANSION SLOTS
8MOTHERBOARDS
6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX)
I/O Port
USB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 2, HD Audio x 1
PSU
Standard PS2 PSU (optional)
FAN SUPPORT
Top:
3 x 120mm, 2 x 120mm, 1 x 120mm,
2 x 140mm, 1 x 140mm

Right:
3 x 120mm, 2 x 120mm, 1 x 120mm

Rear:
1 x 120mm

Bottom:
3 x 120mm, 2 x 120mm, 1 x 120mm
RADIATOR SUPPORT
Top:
1 x 360mm, 1 x 240mm, 1 x 120mm
1 x 280mm, 1 x 140mm

Right:
1 x 360mm, 1 x 240mm, 1 x 120mm

Rear:
1 x 120mm
CLEARANCE
CPU cooler max height: 160mm
VGA max length: 420mm
PSU max length: 180mm
