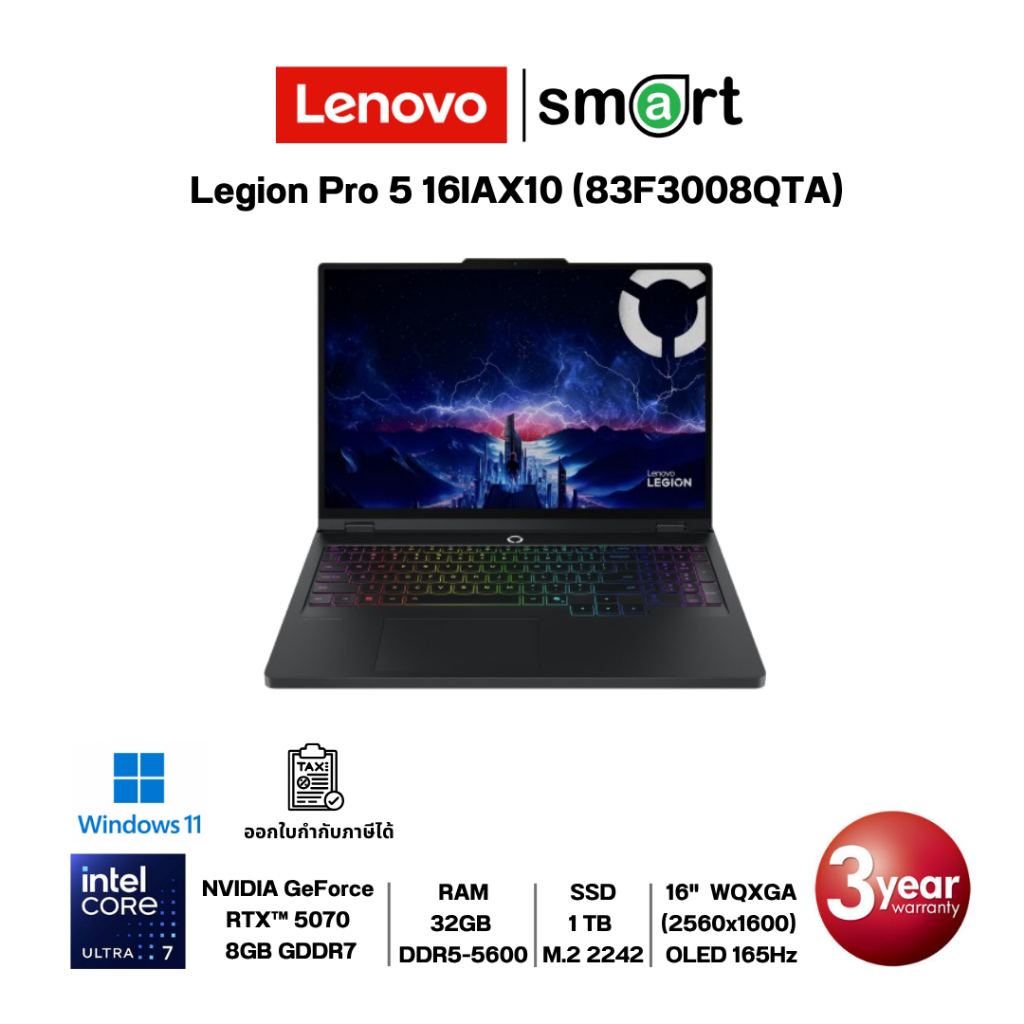

Lenovo Legion Pro 5 16IAX10 (83F3008QTA) Intel Core Ultra 7 255HX/RTX 5070/32GB/1TB/16"OLED/Win11 (Eclipse Black)

PERFORMANCE
Processor: Intel Core™ Ultra 7 255HX, 20C (8P + 12E) / 20T, Max Turbo up to 5.2GHz, 30MB Intel® Smart Cache
AI PC Category: AI-Powered Gaming PC
NPU: Integrated Intel® AI Boost, up to 13 TOPS
Graphics: NVIDIA GeForce RTX™ 5070 8GB GDDR7, Boost Clock 2347MHz, TGP 115W, 798 AI TOPS
Chipset: Intel® HM870 Chipset
Memory: 2x 16GB SODIMM DDR5-5600
Memory Slots: Two DDR5 SODIMM slots, dual-channel capable
Max Memory: Up to 32GB DDR5-5600 offering
Storage: 1TB SSD M.2 2242 PCIe® 4.0x4 NVMe®
Storage Slot: Two M.2 2280 PCIe® 4.0 x4 slots
Max Storage Support: Up to two drives, 2x M.2 SSD
• M.2 2242 SSD up to 1TB
• M.2 2280 SSD up to 1TB
Optical: None
Card Reader: No Card Reader
Audio Chip: High Definition (HD) Audio, Realtek® ALC3306 codec
Speakers: Stereo speakers, 2W x2, audio by HARMAN, optimized with Nahimic Audio
Microphone: 2x, Array
Camera: 5.0MP with E-shutter
Battery: 80Wh
Power Adapter: 245W Slim Tip (3-pin)
Special Features: AI Chip: LA3
DESIGN
Display: 16" WQXGA (2560x1600) OLED 500nits (typical) / 1100nits (peak) Glossy, 100% DCI-P3, 165Hz, DisplayHDR™ True Black 1000, Dolby Vision®, G-SYNC®, Low Blue Light, High Gaming Performance, Flicker Free
Touchscreen: None
Screen-to-Body Ratio: 91.7% AAR (active area ratio)
Color Calibration: Factory Color Calibration
Pen: Pen Not Supported
Keyboard: 24-Zone RGB Backlit, Thai
Touchpad: Buttonless Mylar® surface multi-touch touchpad, supports Precision TouchPad (PTP), 75 x 120 mm (2.95 x 4.72 inches)
Dimensions (WxDxH): 364.38 x 268.06 x 21.69-25.95 mm (14.35 x 10.55 x 0.85-1.02 inches)
Weight: Around 2.43 kg (5.36 lbs)
Case Color: Eclipse Black
Case Material: Aluminium (Top), PC-ABS (Bottom)
Surface Treatment: Anodizing Sandblasting
SOFTWARE
Operating System: Windows® 11 Home Single Language, English
Bundled Software: Office Trial + Lenovo® AI Now
CONNECTIVITY
WLAN + Bluetooth: Wi-Fi® 7, 802.11be 2x2 + BT5.4
WWAN: WWAN Not Supported
Ethernet: 100/1000M (RJ-45)
Standard Ports:
2x USB-A (USB 5Gbps / USB 3.2 Gen 1)
1x USB-A (USB 10Gbps / USB 3.2 Gen 2), Always On
1x USB-C® (USB 10Gbps / USB 3.2 Gen 2), with USB PD 65-100W and DisplayPort™ 2.1
1x USB-C® (Thunderbolt™ 4 / USB4® 40Gbps), with DisplayPort™ 2.1
1x HDMI® 2.1, up to 8K/60Hz
1x Headphone / microphone combo jack (3.5mm)
1x Ethernet (RJ-45)
1x Slim tip Power connector
Docking: Various docking solutions supported via Thunderbolt™ or USB-C®. For more compatible docking solutions, please visit Docking for Legion Pro 5 16IAX10
SECURITY & PRIVACY
Security Chip: Firmware TPM 2.0 Enabled
Fingerprint Reader: No Fingerprint Reader
Other Security: E-shutter
SERVICE
Base Warranty: 1-year, Courier or Carry-in
Included Upgrade: 3Y ADP -IPMAIN (ESS), 3Y Legion Ultimate Support -IPMAIN (ESS)
ACCESSORIES
Bundled Accessories: None
CERTIFICATIONS
Green Certifications: ENERGY STAR® 8.0, ErP Lot 6/26, RoHS compliant
Other Certifications:
TÜV Rheinland® Flicker Free
Pantone® SkinTone™ Validated
Pantone® Validated
TÜV Rheinland® High Gaming Performance
TÜV Rheinland® Low Blue Light (Hardware Solution)
MODEL INFORMATION
Model: 83F3008QTA
Machine Type: 83F3
Region: ASEAN
Country/Region: Thailand
TopSeller: Yes
EAN / UPC / JAN: 199274295349
Announce Date: 2025-12-16
End of Support: 2031-05-16
