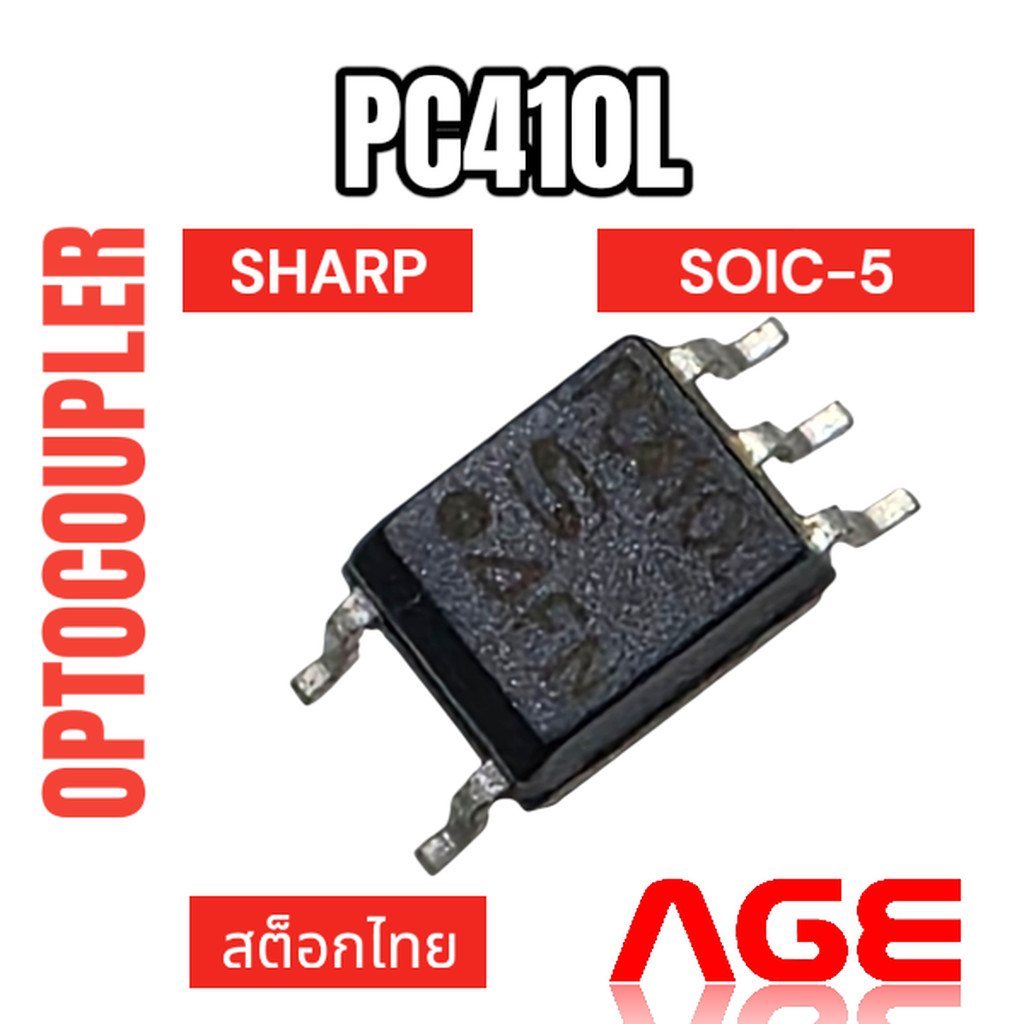

PC410L SOIC-5,SHARP, High Speed 10Mb/s, High CMR Mini-flat PIC Photocoupler

PC410L SOIC-5,SHARP, High Speed 10Mb/s, High CMR Mini-flat PIC Photocoupler

Number of Channels
1




Inputs - Side 1/Side 2
1/0




Voltage - Isolation
3750Vrms




Common Mode Transient Immunity (Min)
10kV/s




Input Type
DC




Output Type
Open Collector




Current - Output / Channel
50 mA




Data Rate
10Mbps




Propagation Delay tpLH / tpHL (Max)
75ns, 75ns




Rise / Fall Time (Typ)
10ns, 20ns




Voltage - Forward (Vf) (Typ)
1.6V




Current - DC Forward (If) (Max)
20mA




Voltage - Supply
4.5V ~ 5.5V




Operating Temperature
-40C ~ 85C




Mounting Type
Surface Mount




Package / Case
6-SOIC (0.173", 4.40mm Width), 5 Leads
