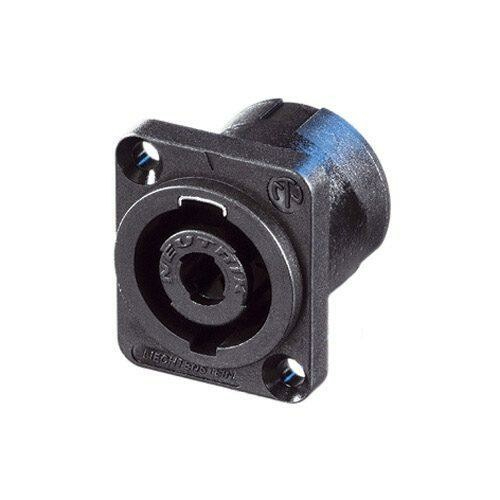

Neutrik NL 4 MPXX ปลั้กติดแท่นลำโพง 4ไส้ นิวทริคแท้
5.0
ขายแล้ว 1 ชิ้น
฿120
Rvada ตรวจสอบราคา
ราคาถูกผิดปกติ (15% ของค่าเฉลี่ยหมวด) ควรตรวจสอบร้านค้าก่อนซื้อ
สหไทยเซลล์ขอนแก่น
แบรนด์:
NEUTRIK
ซื้อที่ Shopee
คุณจะถูกนำไปยัง Shopee
ลิงก์นี้เป็นลิงก์พันธมิตร เราอาจได้รับค่าคอมมิชชั่นจากการสั่งซื้อ โดยราคาที่คุณจ่ายไม่เปลี่ยนแปลง
รายละเอียดสินค้า
The speakON panel mount connectors are the standard chassis connectors for loudspeaker / amplifier interconnections.
They feature a unique metal locking system, making contact only once fully locked. The speakON receptacles are robust, versatile and easy to terminate.
Patent protected, reliable, cost effective, and extremely durable, Neutrik's Speakon® series of professional speaker and amplifier connectors offers the "quick lock" locking system and recently redesigned inserts for the cable ends.
Features:
Current rating 30 A rms
Glass reinforced materials make it extremely robust and dependable
Precise keyway for secure mating
Accurate twist lock latching system
Metal insert in locking area
Airtight design - optimized for speaker applications
Branded with unique hologram - guarantees genuine and authentic Neutrik product
Technical Information:
Title: NL4MP
Connection Type: speakON
Gender: male
Contact resistance: = 3 mO (after lifetime)
Dielectric strength: 4 kVdc (peak)
Insulation resistance: > 1 GO (after dampheat)
Rated current per contact: 30 A rms continuous
Rated current per contact: 40 A audiosignal, duty cycle 50 %
Rated voltage: 250 V ac
Attention: speakON is NOT to be used as an AC mains or power supply connector!
Lifetime: > 5000 mating cycles
Locking device: Quick Lock
Chassis shape: D
Layout: standard hole position, thru holes
Contact plating: 4 µm Ag
Contacts: Bronze (CuSn6)
Shell: Polyamide (PA 6 30 % GR) black
Flammability: UL 94 HB
Solderability: Complies with IEC 68-2-20
Temperature range: -30 °C to +80 °C
The speakON receptacles are robust, versatile and easy to terminate.
They feature a unique metal locking system, making contact only once fully locked. The speakON receptacles are robust, versatile and easy to terminate.
Patent protected, reliable, cost effective, and extremely durable, Neutrik's Speakon® series of professional speaker and amplifier connectors offers the "quick lock" locking system and recently redesigned inserts for the cable ends.
Features:
Current rating 30 A rms
Glass reinforced materials make it extremely robust and dependable
Precise keyway for secure mating
Accurate twist lock latching system
Metal insert in locking area
Airtight design - optimized for speaker applications
Branded with unique hologram - guarantees genuine and authentic Neutrik product
Technical Information:
Title: NL4MP
Connection Type: speakON
Gender: male
Contact resistance: = 3 mO (after lifetime)
Dielectric strength: 4 kVdc (peak)
Insulation resistance: > 1 GO (after dampheat)
Rated current per contact: 30 A rms continuous
Rated current per contact: 40 A audiosignal, duty cycle 50 %
Rated voltage: 250 V ac
Attention: speakON is NOT to be used as an AC mains or power supply connector!
Lifetime: > 5000 mating cycles
Locking device: Quick Lock
Chassis shape: D
Layout: standard hole position, thru holes
Contact plating: 4 µm Ag
Contacts: Bronze (CuSn6)
Shell: Polyamide (PA 6 30 % GR) black
Flammability: UL 94 HB
Solderability: Complies with IEC 68-2-20
Temperature range: -30 °C to +80 °C
The speakON receptacles are robust, versatile and easy to terminate.
