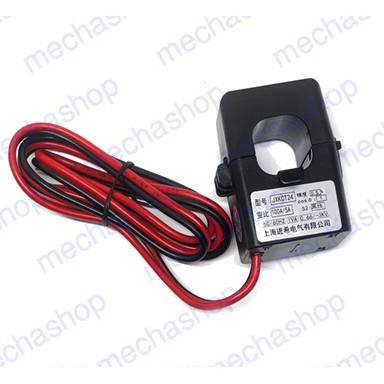

ซีทีเซนเซอร์วัดกระแสไฟฟ้า ขนาด 100A/200A CT Meters Clamp AC Current Transformer KCT24 Diameter 24mm

ซีทีเซนเซอร์วัดกระแสไฟฟ้า ขนาด 100A/200A CT Meters Clamp Sensors AC Current Transformer KCT24 100/5&200/5 Diameter 24mm

Description:
This is a mini split base current transformer;Using snap joint structure, it can be fixed to the cable directly through nylon ties.Fully enclosed, good mechanical properties and environmental resistance, strong voltage isolation capability, safety and reliability.
Built-in input coil; small and light, easy to install.
The diameter of inner hole is 24mm, the accuracy is ≤0.5 grade,

Specification:
Item Name: Current Transformer
Model: KCT24
Primary Current: 100A /200A
Secondary Current: 5A
Rated Ratio: 100/5 ,200/5
Voltage: 600V 50/60Hz
Rated Voltage: 0.66KV
Accuracy Class: 0.5
Environment temperature: -40~+85
Relative humidity: ≤ 80%(40)
Total Size: 65 x 52 x 34mm.
Case Material: Plastic
Color: Black

#Current transformer #CT 100/5 & 200/5 #CT100A/200A #Current AC #CT #ซีทีเซนเซอร์ #CT Meters #AC Current
