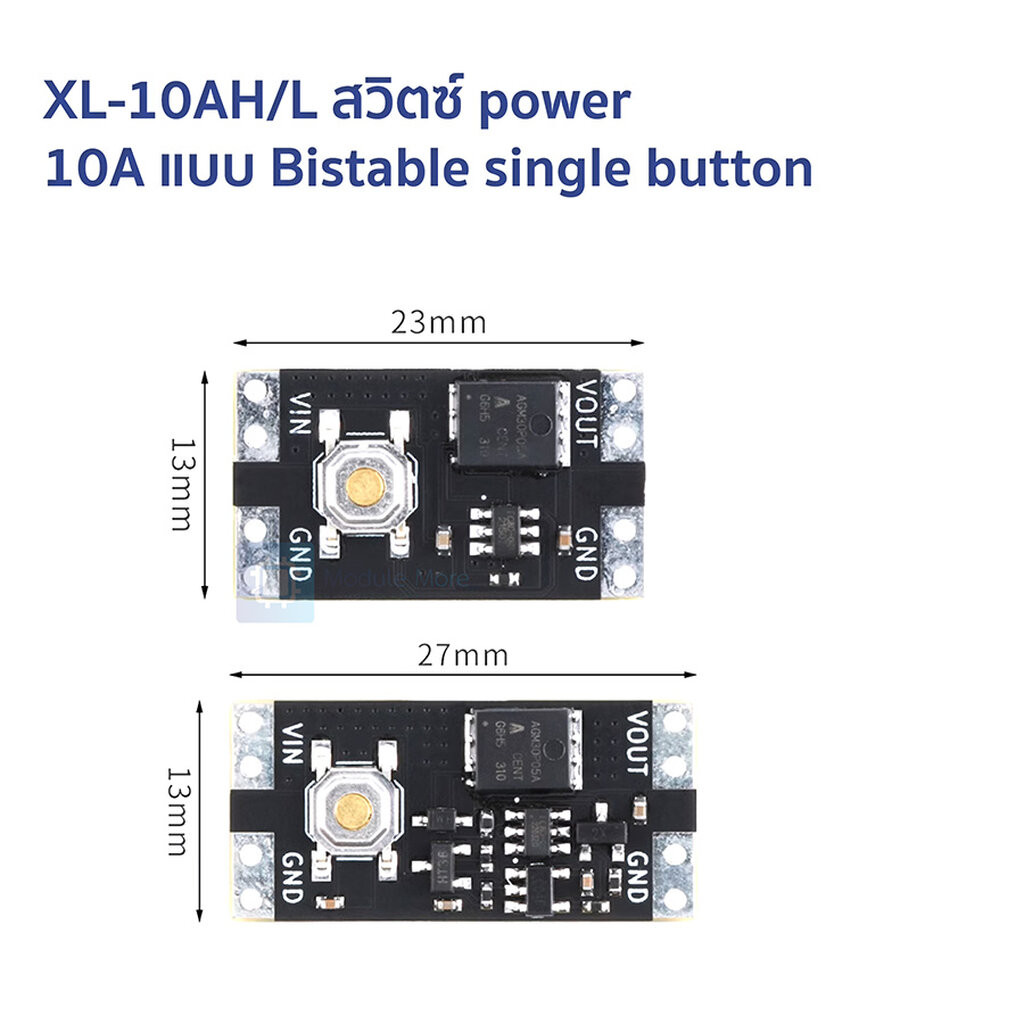

XL-10AH/L สวิตซ์ power 10A แบบ Bistable single button 10A current load wide voltage low power consumption
5.0
ขายแล้ว 3 ชิ้น
0 ครั้ง
฿30
ModuleMore
แบรนด์:
NoBrand
ซื้อที่ Shopee
คุณจะถูกนำไปยัง Shopee
รายละเอียดสินค้า
XL-10AH/L สวิตซ์เปิดปิด 10A แบบ Bistable single button 10A current load wide voltage low power consumption
ใช้เปิดปิดอุปกรณ์กินไฟ แบบกดติด กดดับ เมื่อดับ จะแทบไม่กินกระแส เมื่อติด สามารถรองรับกระแสได้ถึง 10A (peak)
หากใช้คู่กับ inductive load เช่น มอเตอร์ คอยล์ กลอนไฟฟ้า รีเลย์ เป็นต้น ให้ใช้ flyback diode ร่วมด้วย
หากใช้คู่กับ resistive load เช่น led หรือไฟเลี้ยงอุปกรณ์ต่าง ๆ สามารถใช้งานได้เลย
เหมาะกับงาน IoT ต้องการพลังงานต่ำในช่วง off state
Product Details
Product Parameters
- Model: XL-10AL/XL-10AH
- Working Voltage: - XL-10AL: 3.5-5.4V
- XL-10AH: 4.5-26V
- Static Power Consumption: (Deviation exists in sampling test but not large) - XL-10AL: 300nA (5V voltage measurement)
- XL-10AH: 1.3uA (12V voltage measurement)
- Load Current: - XL-10AL: 10A (5V voltage test for 30 minutes)
- XL-10AH: 10A (12V voltage test for 30 minutes)
- Voltage Drop: - XL-10AL: 130mV (5V 10A measurement)
- XL-10AH: 120mV (12V 10A voltage measurement)
Precautions
- Regarding the load current, XL-10AL can run for a long time at 5V, and it will get very hot. However, it has passed the 30-minute long-run test at room temperature of about 25C. It is not recommended to run at 10A for a long time below 4V voltage. Under low voltage conditions, the heat generation will be larger, which is easy to burn the module. XL-10AH 10A current is not recommended to run for a long time below 7V voltage.
- Under small current conditions, the input voltage of the module is basically equal to the output voltage. For large currents of 10A, the MAX can reach 170mV, which is unavoidable, so you have to accept this phenomenon.
- When using the module, do not use your hands or other objects with static electricity or low resistance to touch the input and output ports of the module at the same time, as this will cause the module to work unstable.
- Regarding the external connection of your own buttons, you can refer to the following figure to connect your connecting wires to your buttons.
