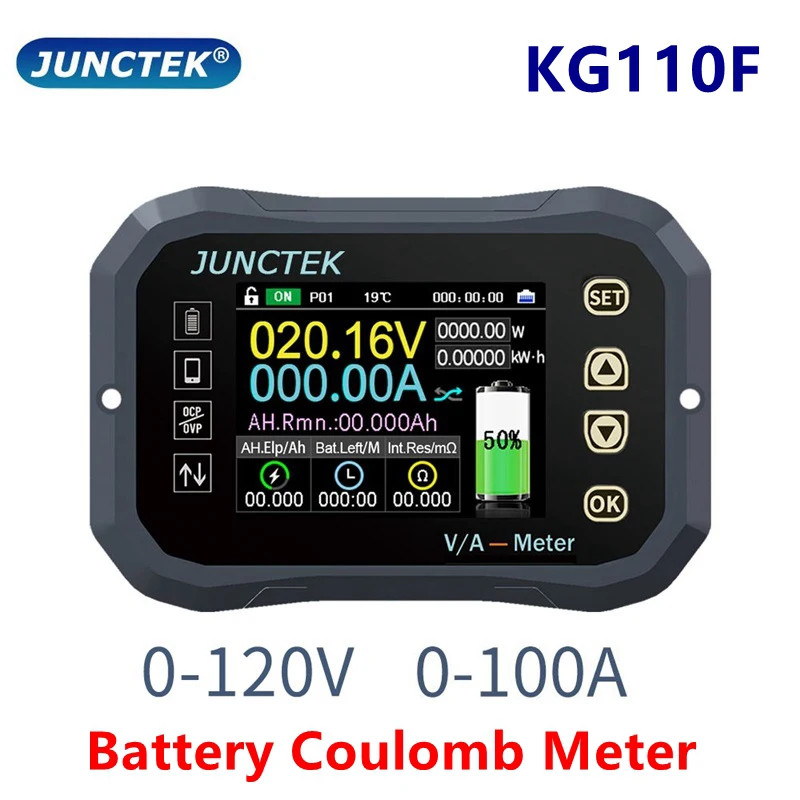

Juntek KG110F DC 120V 100A Lithium Capacity Tester High-precision Voltage Current Coulomb Meter Car
5.0
ขายแล้ว 1 ชิ้น
฿3,024
Rvada ตรวจสอบราคา
สินค้านี้มีประวัติขายน้อย (1 ชิ้น) โปรดพิจารณาข้อมูลร้านค้าประกอบ
VacuumVenus
แบรนด์:
NoBrand
ซื้อที่ Shopee
คุณจะถูกนำไปยัง Shopee
ลิงก์นี้เป็นลิงก์พันธมิตร เราอาจได้รับค่าคอมมิชชั่นจากการสั่งซื้อ โดยราคาที่คุณจ่ายไม่เปลี่ยนแปลง
รายละเอียดสินค้า
New Coulomb Counter KG110F DC 0-120V 100A Lithium Battery Iron Phosphate Capacity Detector Coulomb Meter Indicator Capacity Tester Current Meter Battery Coulomb Meter Capacity Indicator
KG-F series color screen wireless bluetooth battery coulomb meter is a professional instrument for monitoring battery power, and it can also monitor the voltage, current, power, ambient temperature, and energy of the battery during charging and discharging.Real-time display of how long the battery can be fully charged and how long the remaining battery power can be used. The measuring current range of KG110F is 0-100A. 0-120V lead-acid batteries, lithium batteries, iron-lithium batteries and all other batteries can be used.
Performance Advantages :
◆ 2.4-inch color screen, larger and clearer fonts, beautiful appearance;◆ Automatically identify the current in both charging and discharging directions；◆ Using current*working time to calculate the capacity of charging and discharging is more accurate than calculating the remaining capacity by voltage；◆ The mobile APP can connect to the meter through wireless Bluetooth to view data and set parameters；◆ The mobile phone APP can upgrade the firmware of the measurement module；◆ The mobile APP can view the real-time curve and historical curve of voltage and current, and support historical data export;◆ The shunt and the screws are made of pure copper material, and the power consumption in standby mode is very low；◆ After configuring the relay, it can realize over-voltage protection, under-voltage protection, over-current protection, over-temperature protection, and over-power protection (the delivery list does not include relays);◆ The parameters of voltage, current and temperature can be calibrated by themselves；◆ The display and measurement module are connected through a 3 meter telephone line, and the maximum length can be extended to 30 meters, which is more convenient for installation.
Specifications :
◆ Model:KG110F;◆ Voltage measurement range(External power supply):0-120V;◆ Voltage measurement range(Self-powered):10-120V;◆ Voltage resolution:0.01V;◆ Current measurement range:0~100A;◆ Current resolution:0.01A;◆ Relay:Optional;◆ Temperature measurement range:-20-120℃;◆ AH measurement range:0~9999.99AH;◆ Bluetooth communication distance:10m;◆ Voltage accuracy:±2%+3 digits;◆ Current accuracy:±5%+10 digits;◆ Packge size:14*14*10cm;◆ Weight:400g.
Packing List :
◆ 1 * Display Module (Model Optional);◆ 1 * 3P Terminal;◆ 1 * Measuring Module;◆ 1 * Communication Cable (3.0m);◆ 1 * Sampler;◆ 1 * 3P Connection Cable;◆ 1 * Temperature Sensor;◆ 1 * 4P Connection Cable.
Please place your order according to the title description, and we will arrange for our staff to contact you as soon as possible. We guarantee that the items you purchase are correct and error free. We hope you have a good shopping experience. Thank you!
KG-F series color screen wireless bluetooth battery coulomb meter is a professional instrument for monitoring battery power, and it can also monitor the voltage, current, power, ambient temperature, and energy of the battery during charging and discharging.Real-time display of how long the battery can be fully charged and how long the remaining battery power can be used. The measuring current range of KG110F is 0-100A. 0-120V lead-acid batteries, lithium batteries, iron-lithium batteries and all other batteries can be used.
Performance Advantages :
◆ 2.4-inch color screen, larger and clearer fonts, beautiful appearance;◆ Automatically identify the current in both charging and discharging directions；◆ Using current*working time to calculate the capacity of charging and discharging is more accurate than calculating the remaining capacity by voltage；◆ The mobile APP can connect to the meter through wireless Bluetooth to view data and set parameters；◆ The mobile phone APP can upgrade the firmware of the measurement module；◆ The mobile APP can view the real-time curve and historical curve of voltage and current, and support historical data export;◆ The shunt and the screws are made of pure copper material, and the power consumption in standby mode is very low；◆ After configuring the relay, it can realize over-voltage protection, under-voltage protection, over-current protection, over-temperature protection, and over-power protection (the delivery list does not include relays);◆ The parameters of voltage, current and temperature can be calibrated by themselves；◆ The display and measurement module are connected through a 3 meter telephone line, and the maximum length can be extended to 30 meters, which is more convenient for installation.
Specifications :
◆ Model:KG110F;◆ Voltage measurement range(External power supply):0-120V;◆ Voltage measurement range(Self-powered):10-120V;◆ Voltage resolution:0.01V;◆ Current measurement range:0~100A;◆ Current resolution:0.01A;◆ Relay:Optional;◆ Temperature measurement range:-20-120℃;◆ AH measurement range:0~9999.99AH;◆ Bluetooth communication distance:10m;◆ Voltage accuracy:±2%+3 digits;◆ Current accuracy:±5%+10 digits;◆ Packge size:14*14*10cm;◆ Weight:400g.
Packing List :
◆ 1 * Display Module (Model Optional);◆ 1 * 3P Terminal;◆ 1 * Measuring Module;◆ 1 * Communication Cable (3.0m);◆ 1 * Sampler;◆ 1 * 3P Connection Cable;◆ 1 * Temperature Sensor;◆ 1 * 4P Connection Cable.
Please place your order according to the title description, and we will arrange for our staff to contact you as soon as possible. We guarantee that the items you purchase are correct and error free. We hope you have a good shopping experience. Thank you!
