Dual E Intel Ac8265 Nic Ule รองรับ 2.4Ghz/5Ghz Wifi และบลูทูธ 4.2 สําหรับ Jetson Nano Developer Kit

Wireless-AC8265 is a dual e wireless NIC ule applicable for NVIDIA Jetson Nano Developer Kit.
Supports 2.4GHz / 5GHz dual band WiFi and Bluetooth 4.2.
Chip: Intel 8265AC; Bands: 2.4GHz / 5GHz;Speed: 300Mbps / 867Mbps
WiFi protocol: 802.11ac ;Bluetooth version: 4.2; NIC interface: NGFF (M.2);Antenna interface: IPEX connector
Supported OS: Linux, Windows 10/8.1/8/7

Dimensions: 22mm x 30mm x 2.4mm
How to Use:
1. Remove the two screws on Jetson Nano,detach the Jetson Nano
2. Connect the extension cable to Wireless-AC8265 on IPEX connector , tighten the nut and washer to each SMA connector
3. Remove the NIC screw onboard, insert the Wireless-AC8265 into the M.2 socket , screw it tightly
4. Insert the Jetson Nano into the socket and screw it again , connect the antennas
Colour: green
Material: PCB

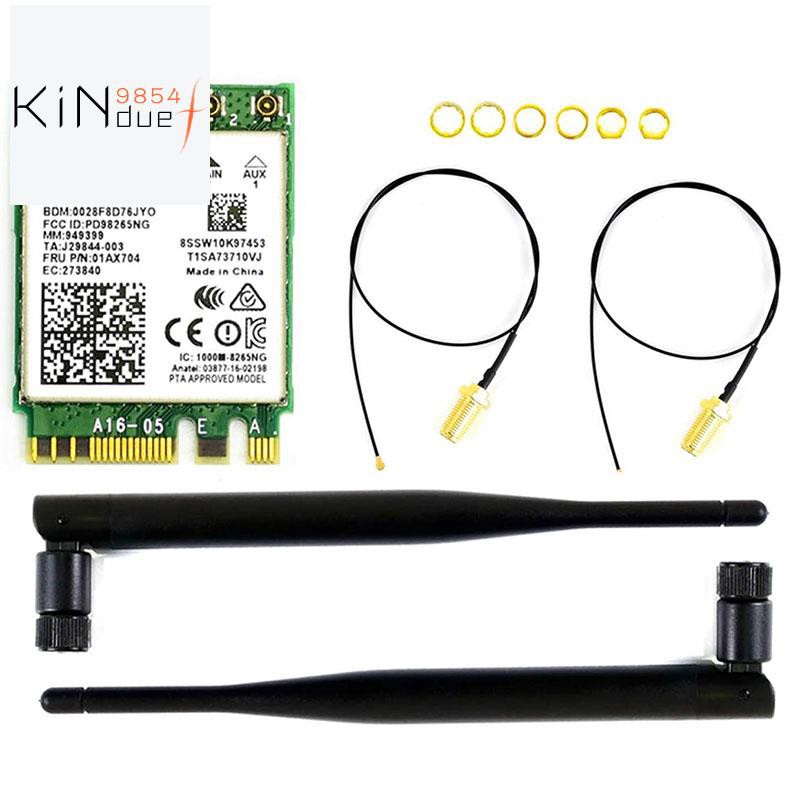

Package Contents:
1 x Wireless network card AC8265
2 x Antenna
2 x IPEX to SMA cable
Note: This item does not support Jetson Nano 2GB Developer Kit
Please check detailed Graphic and Textual instruction from the picture aboveOnly the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
