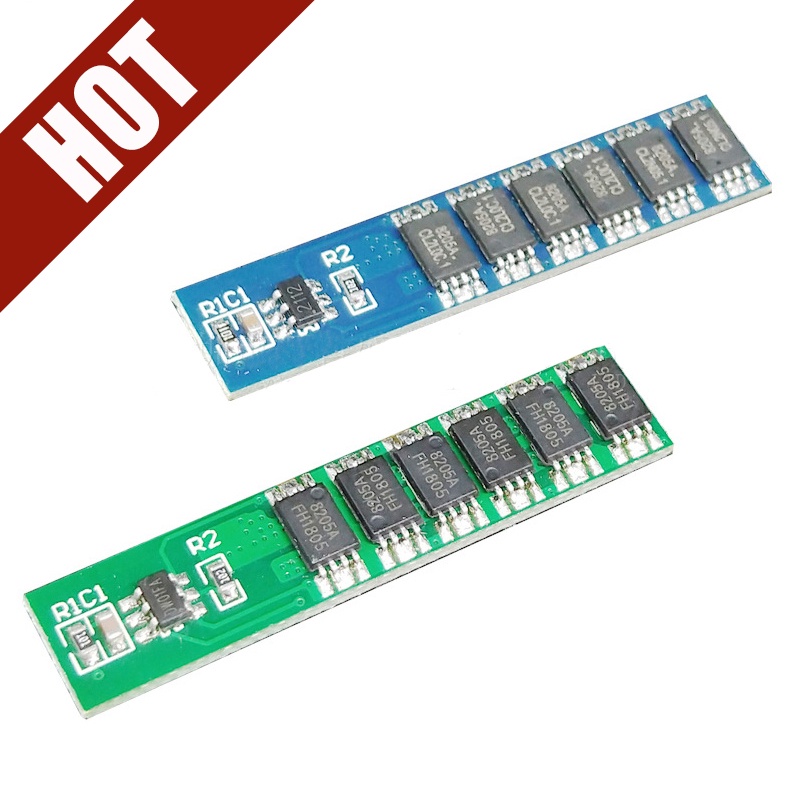

1S 15A 3.7V Li-ion 3.2V LifePo4 6MOS BMS PCM แผงป้องกันแบตเตอรี่ PCM

3.7V lithium battery protection board 6MOS;
Overcharge detection voltage: 4.25±0.05V
Overcharge release voltage: 4.23±0.05V
Overdischarge detection voltage: 2.45±0.1V
Upper limit continuous current: 12A
Overcurrent detection current: 15A
Charging voltage: 4.2V
Product size: 35*7.4*2.2MM
IC component: DW01+8205A

Lithium iron phosphate

3.2V lithium iron phosphate battery protection board 6MOS:
Overcharge detection voltage: 3.75±0.05V
Overcharge release voltage: 3.75±0.05V
Overdischarge detection voltage: 2.1V±0.1V
Upper limit continuous current: 12A
Overcurrent detection current: 15A
Charging voltage: 3.6V
Product size: 35*7.4*2.2MM
IC component: DW01+8205A

The main function:
Overcharge protection, overdischarge protection, short circuit protection, overcurrent protection.
Wiring instructions: 3.2V and 3.7V wiring methods are consistent;
B+ is connected to the positive terminal of the battery.
B- Connected to the negative pole of the battery.
P+ is the positive input of the battery pack input
P- is the negative input of battery pack output
