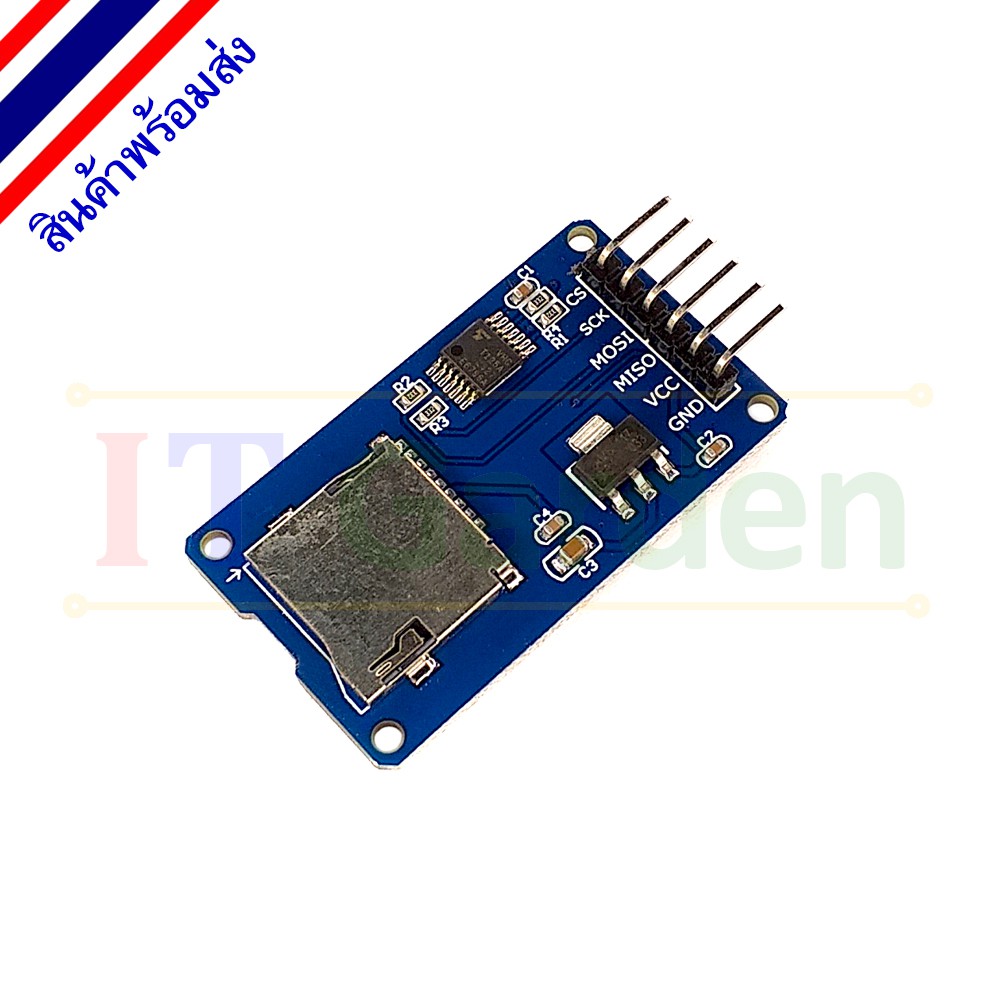

Micro SD Card Reader Module SPI Read/Write
5.0
ขายแล้ว 1 ชิ้น
฿32
IT-Garden
แบรนด์:
NoBrand
ซื้อที่ Shopee
คุณจะถูกนำไปยัง Shopee
ลิงก์นี้เป็นลิงก์พันธมิตร เราอาจได้รับค่าคอมมิชชั่นจากการสั่งซื้อ โดยราคาที่คุณจ่ายไม่เปลี่ยนแปลง
รายละเอียดสินค้า
Features :
The module (MicroSD Card Adapter) is a Micro SD card reader module, and the SPI interface via the file system driver, microcontroller system to complete the MicroSD card read and write files. Arduino users can directly use the Arduino IDE comes with an SD card to complete the library card initialization and read-write
Specifications :
• Support Micro SD Card, Micro SDHC card (high-speed card)
• the level conversion circuit board that can interface level is 5V or 3.3V
• power supply is 4.5V ~ 5.5V, 3.3V voltage regulator circuit board
• Communication interface is a standard SPI interface
- Control Interface: A total of six pins (GND, VCC, MISO, MOSI, SCK, CS), GND to ground, VCC is the power supply, MISO, MOSI, SCK is the SPI bus, CS is the chip select signal pin
• 4 M2 screw positioning holes for easy installation
The module (MicroSD Card Adapter) is a Micro SD card reader module, and the SPI interface via the file system driver, microcontroller system to complete the MicroSD card read and write files. Arduino users can directly use the Arduino IDE comes with an SD card to complete the library card initialization and read-write
Specifications :
• Support Micro SD Card, Micro SDHC card (high-speed card)
• the level conversion circuit board that can interface level is 5V or 3.3V
• power supply is 4.5V ~ 5.5V, 3.3V voltage regulator circuit board
• Communication interface is a standard SPI interface
- Control Interface: A total of six pins (GND, VCC, MISO, MOSI, SCK, CS), GND to ground, VCC is the power supply, MISO, MOSI, SCK is the SPI bus, CS is the chip select signal pin
• 4 M2 screw positioning holes for easy installation
