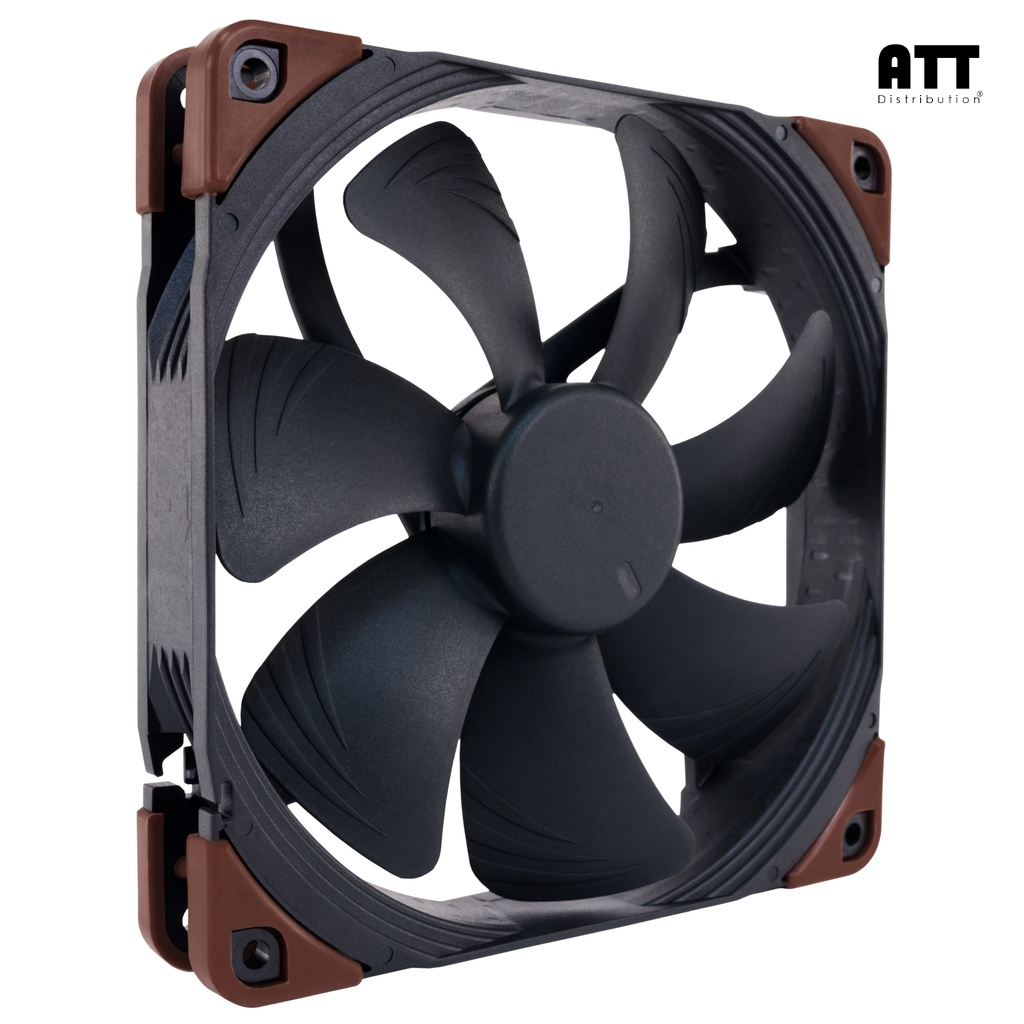

NF-A14 industrialPPC

Conceived for industrial heavy duty applications that require enhanced cooling performance and advanced ingress protection, the NF-A14 industrialPPC (Protected Performance Cooling) is a ruggedised high-speed version of the award-winning retail model. Thanks to the outstanding aerodynamic efficiency of the NF-A14 design and the use of a novel three-phase motor, the industrialPPC version provides superior airflow and pressure capacity while keeping noise levels and power consumption moderate as against comparable high-speed fans. While its fibre-glass reinforced polyamide construction and certified water and dust protection make the NF-A14 industrialPPC suitable for operation in challenging environments, the renowned SSO2 bearing technology ensures an MTTF of over 150.000hrs. Topped off with Noctua’s trusted reliability, the NF-A14 industrialPPC is an ideal choice for highly demanding applications that require superior flow rates and ultimate dependability.

Award-winning NF-A14 design
Having received more than 100 awards and recommendations from the international press, Noctua's NF-A14 has become a proven premium choice for 140mm cooling needs. Its renowned efficiency has convinced tens of thousands of customers all over the world.

3000rpm industrialPPC version
Running twice as fast as the 1500rpm retail version, the NF-A14 industrialPPC-3000 provides extreme airflow and pressure performance. Combined with the industrialPPC series' robust polyamide construction and advanced protection features, this makes the fan ideal for challenging industrial applications.

Fibre-glass reinforced polyamide construction
Both the impeller and the frame of Noctua’s industrialPPC fans are made entirely from fibre-glass reinforced polyamide. This material can withstand temperatures up to 140°C and makes the fans even more robust and break-proof than Noctua’s standard fibre-glass reinforced PBT fans.

Certified IP52 water- and dust protection
Thanks to a special varnish coating that covers the motor and PCB, the NF-A14 industrialPPC complies with the ingress protection rating IP52. This means that it is not only highly dust resistant but also withstands dripping water equivalent to 3mm rainfall per minute.

Three-phase motor design
While most axial fans use single-phase motors with 4 slots, Noctua's industrialPPC fans feature a three-phase design with 6 slots, which provides smoother transitions between the slots and thus allows for even higher running smoothness, further reduced vibrations and unprecedented energy efficiency.

Please Note:
The industrialPPC models are high-speed fans for industrial applications. As such, they are not as quiet as other Noctua fans and less suited for low-noise PC builds. Unless you specifically require the higher speeds and performance of the industrialPPC versions, we recommend using models of our other product lines.



FAN Specification
Size 140x140x25 mm
Mounting hole spacing 124,5x124,5 mm
Connector & pin-configuration 4-pin PWM
Cable length 40cm
Bearing SSO2
Blade geometry A-Series with Flow Acceleration Channels
Frame technology AAO
Material Fibre-glass reinforced polyamide
Ingress protection IP52
Motor type Three-phase
Rotational speed (+/- 10%) 3000 RPM
Min. rotational speed (PWM, +/-20%) 800 RPM
Airflow 269,3 m³/h
Acoustical noise 41,3 dB(A)
Static pressure 10,52 mm H₂O
Max. input power 6,6 W
Max. input current 0,55 A
Operating voltage 12 V
MTTF > 150.000 h

Scope of delivery

Fan
4 Fan Screws
Warranty 6 years
