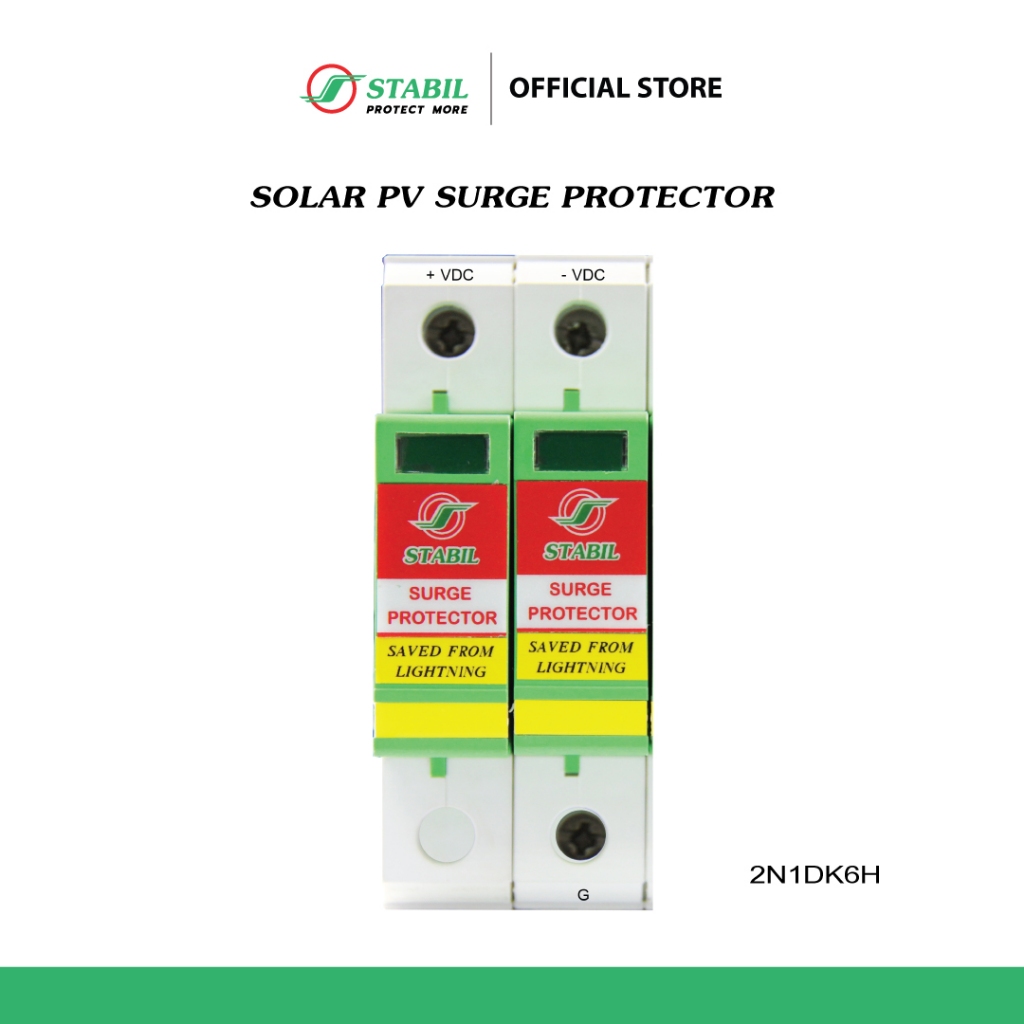

SOLAR PV SURGE PROTECTOR 2N1D-H series
5.0
ขายแล้ว 1 ชิ้น
฿2,622
฿3,745
-30%
Rvada ตรวจสอบราคา
สินค้านี้มีประวัติขายน้อย (1 ชิ้น) โปรดพิจารณาข้อมูลร้านค้าประกอบ
Stabil_Official
แบรนด์:
Stabil(สตาบิล)
ซื้อที่ Shopee
คุณจะถูกนำไปยัง Shopee
ลิงก์นี้เป็นลิงก์พันธมิตร เราอาจได้รับค่าคอมมิชชั่นจากการสั่งซื้อ โดยราคาที่คุณจ่ายไม่เปลี่ยนแปลง
รายละเอียดสินค้า
1. GENERAL APPLICATIONS
1.1) The protector is for protecting your valued equipment from surges, transients, lightning impulses coupled into power system via direct or indirect strikes,
an on/off or a short circuit in the transmission lines, induced or coupled into a DC voltage system, providing the safety of your personnel, communication
equipment, computers and any other electronic equipment e.g. solar power system and etc.
1.2) The protector is able to protect Transient ( also called " Surge " ) such as an impulse of 8/20 µSec. and impulse of 10/350 µSec. waveform.
1.3) Matal Oxide Varistor ( MOV ), surge protecting component, is manufactured by TDK ( formerly named SIEMENS ) with the approval of UL1449.
1.4) The protector housing is made of nonflammable class material in according with UL94V-0 standard and DIN rail 35 mm. mountable.
1.5) The protector is plug in module unit with base element type for easy installation and replacement.
1.6) The protector is desingned, manufactured and tested according to the standard of IEC 61643-31 and EN 50539.
2. TECHNICAL DATA
Descriptions 2N1DK6H 2N1DK8H 2N1D1KH 2N2DK6H 2N2DK8H 2N2D1KH
2.1) Nominal operating voltage 600 Vdc 800 Vdc 1000 Vdc 600 Vdc 800 Vdc 1000 Vdc
2.2) Max. operating voltage (Uc) 700 Vdc 900 Vdc 1100 Vdc 700 Vdc 900 Vdc 1100 Vdc
2.3) IEC / EN Class I / Class I + II / Type 1 / Type 1+2
2.4) Response time < 25 nSec
2.5) Operating temperature -20 °C to + 85 °C
2.6) DC load current Independent ( Un-limited )
2.7) Max. Impulse current (Iimp) 1.5 kA 6.5 kA
( at 10/350 µSec. )
2.8) Nominal discharge current (In) 20 kA 20 kA
( at 8/20 µSec. )
2.9) Max. discharge current (Imax) 40 kA 40 kA
( at 8/20 µSec. )
2.10) Residual voltage (Ures)
( Differential mode 6 kV / 3 kA ) < 4.1 kV < 4.3 kV < 4.5 kV < 4.1 kV < 4.3 kV < 4.5 kV
( Common mode 6 kV / 3 kA ) < 2.4 kV < 2.6 kV < 2.8 kV < 2.4 kV < 2.6 kV < 2.8 kV
2.11) Protection mode All modes ( [+]-G , [-]-G , [+]-[-] )
2.12) Status display Normal or Fault indicator
2.13) Housing material UL94V-0 standard
2.14) Mounting DIN rail 35 mm.
2.15) Connection type Screw terminal
2.16) Dimension ( W x L x H ) Approx. 100 x 37 x 70 mm. Approx.100 x 72 x 70 mm.
2.17) Weight Approx. 300 grams Approx. 300 grams
2.18) Standard according IEC 61643-31 and EN 50539
