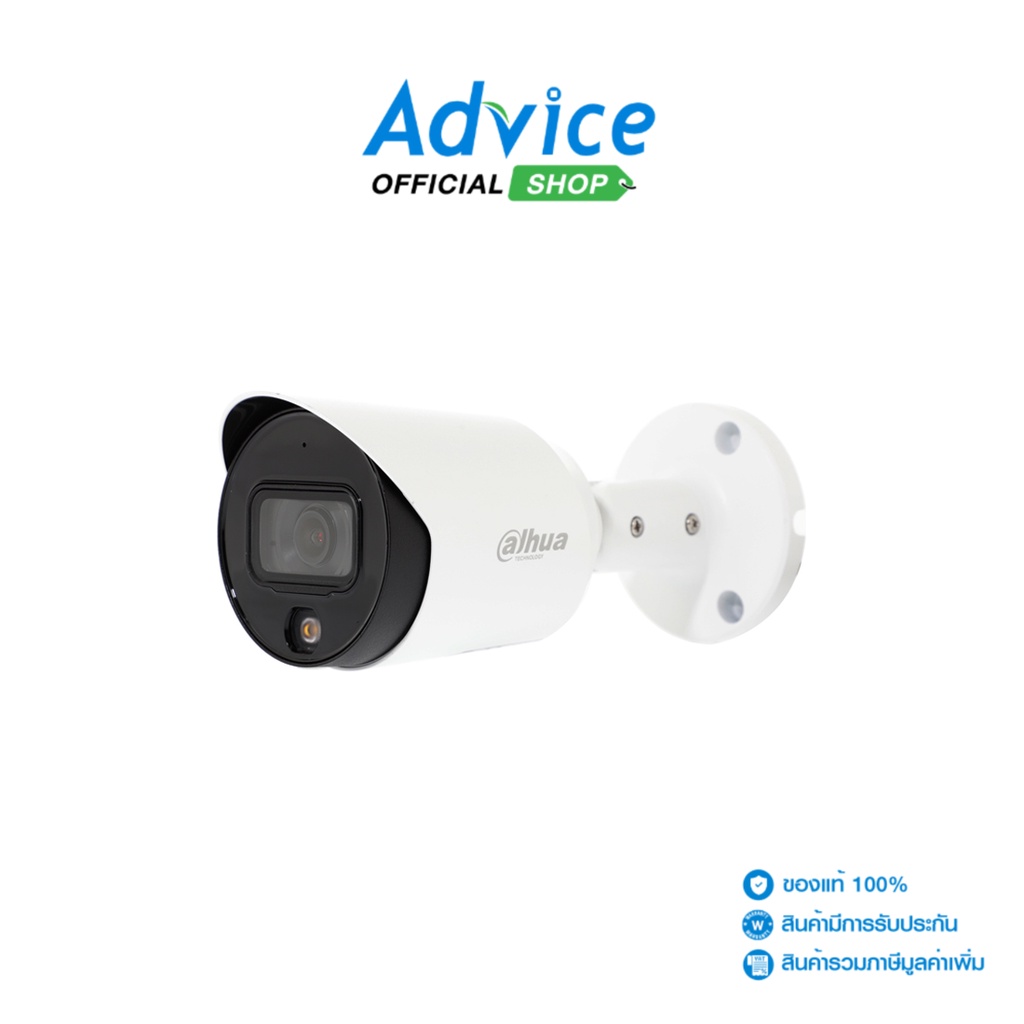

DAHUA CCTV 2.8mm HDCVI#HFW1239TP-A-LED - A0143617 - A0143617

Brand DAHUA
Model HFW1239TP-A-LED
Image Sensor 1/2.8" CMOS
Lens
Aperture : F1.6
Focal Length : 2.8mm
Lens Mount M12
Angle of View
Horizontal : 106.0°
Vertical : 56.5°
Diagonal : 126.2°
Adjustment Angle
Pan : 0°-360°
Tilt : 0°-78°
Rotation : 0°-360°
Shutter
PAL : 1/25s–1/100000s
NTSC : 1/30s–1/100000s
Min. Illumination 0.005Lux/F1.6, 30IRE, 0Lux white Light on
IR 30m
Video Resolution 1920×1080
Video Compression N/A
Frame Rate
PAL : 1080@25fps, 720@25fps, 720@50fps;
NTSC : 1080@30fps, 720@30fps, 720@60fps
AHD : PAL: 1080@25fps,720@25fps;
NTSC : 1080@30fps,720@30fps
TVI : PAL: 1080@25fps,720@25fps,720@50fps;
NTSC : 1080@30fps,720@30fps,720@60fps
CVBS : PAL: 960×576H;
NTSC : 960×480H
Audio Built-in mic
Interface BNC
Functions DWDR
White Balance
Gain Control
Noise Reduction
Smart Light
Electronic Defog
16X Digital Zoom
Power 12VDC, ±30%
Power Consumption Max 3W (12V DC, white light on)
Working Environment Operating Temperature : -40°C to +60°C (-40°F to 140°F); <95% (non-condensation)
Storage Temperature : -40°C to +60°C (-40°F to 140°F); <95% (non-condensation)
Ingress Protection IP67
Material IMetal throughout the whole casing
Package Contents N/A
Dimension (W x D x H) : 17.45 x 70.60 x 7.23 cm
Net Weight 0.34 KG
