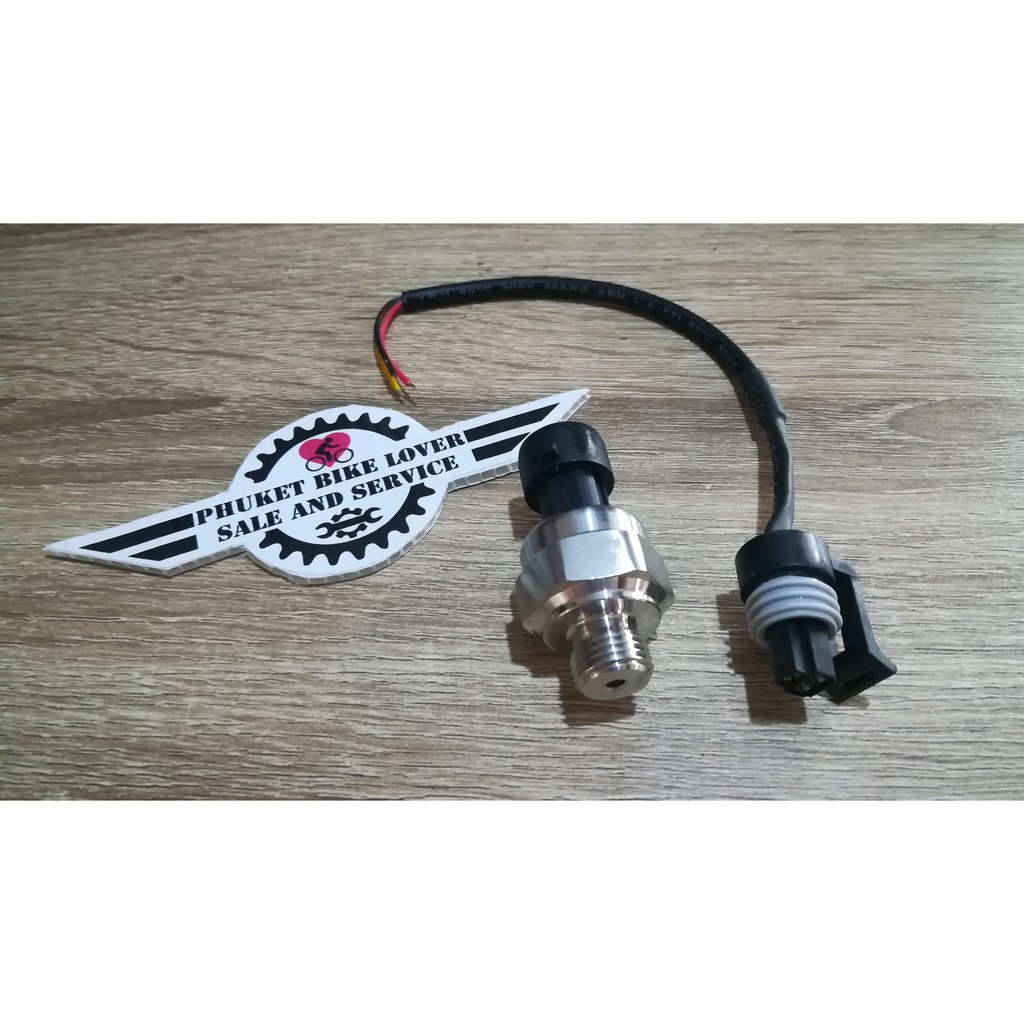

คุณภาพดี Sensor วัดแรงดัน ลม น้ำ Pressure Transmitter DC 5V G1/4 0-1.2 MPa / 0-174 PSI สำหรับ Arduino IoT ส่งเร็ว

คุณภาพดี Sensor วัดแรงดัน ลม น้ำ Pressure Transmitter DC 5V G1/4 0-1.2 MPa / 0-174 PSI สำหรับ Arduino IoT ส่งเร็ว

Capacity: 0-174PSI
Working Current:less than or equal to 10 mA
Response Time:less than or equal to 2.0 ms
1.Suitable for wall hanging furnace, gas furnace, gas storage, etc all kinds of hydraulic, pneumatic pressure measurement
2.Suitable for civil use product batch
3.Static accuracy: plus or minus 1.0% FS
4.Pressure range 0-1.2 MPa (can be customized according to customer requirements)
5.Wide range of temperature compensation
6.Medium for non-corrosive gas, water, oil, etc
Typical Application
Non-corrosiveness Liquid pressure survey
Technical Parameters
Working Voltage:5.0 VDC
Output Voltage:0.5-4.5 VDC
Working Pressure Range:0-1.2 MPa
The Biggest Pressure:2.4 MPa
Destroy Pressure:3.0 MPa
Working TEMP. Range:0-85 Celsius
Storage Temperature Range:0-100 Celsius
Measuring Error:+/-1.5 %FSO
Temperature Range Error:+/-3.5 %FSO
Cycle Life:500,000 pcs
Package Contents:
1*Pressure Sensor
NOTE: It is not compatible with cars according to User Experience, it caused the working Temp. range is 0-85 Celsius.
