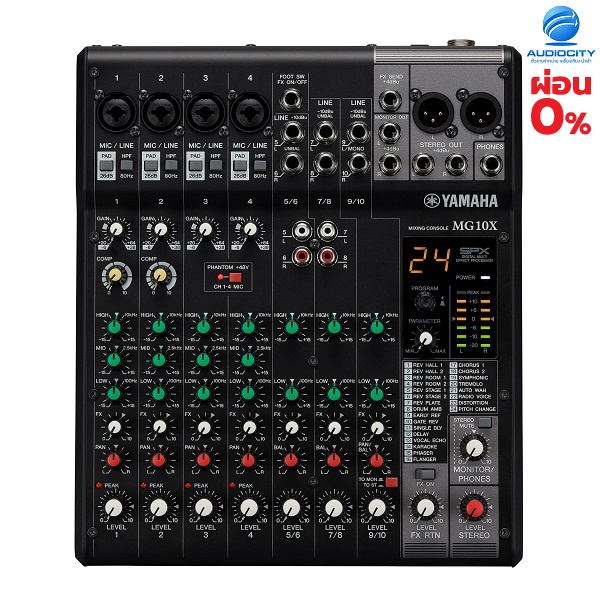

YAMAHA MG10X CV มิกเซอร์แบบอนาล็อค 10 Channel Stereo Mixer with SPX Effects Processor
5.0
ขายแล้ว 1 ชิ้น
฿13,700
Rvada ตรวจสอบราคา
สินค้านี้มีประวัติขายน้อย (1 ชิ้น) โปรดพิจารณาข้อมูลร้านค้าประกอบ
AUDIOCITY (ออดิโอซิตี้)
แบรนด์:
Yamaha
ซื้อที่ Shopee
คุณจะถูกนำไปยัง Shopee
ลิงก์นี้เป็นลิงก์พันธมิตร เราอาจได้รับค่าคอมมิชชั่นจากการสั่งซื้อ โดยราคาที่คุณจ่ายไม่เปลี่ยนแปลง
รายละเอียดสินค้า
YAMAHA MG10X CV มิกเซอร์แบบอนาล็อค 10 Channel Stereo Mixer with SPX Effects Processor
Road Tough. Studio Ready.
MG10X CV - Details
Features:
Rugged, Powder-coated steel chassis for superior durability
Discrete Class-A microphone preamps
Built-in SPX digital effects with 24 programs
Switchable +48V Phantom power
Color coded controls offer easy operation
Specifications:
General Specifications:
Frequency Response Input to STEREO OUT: +0.5 dB/-1.5 dB (20 Hz to 48 kHz), refer to the nominal output level @ 1 kHz,
GAIN knob: Min
Total harmonic distortion (THD+N) Input to STEREO OUT: 0.02 % @ +14 dBu (20 Hz to 20 kHz), GAIN knob: Min
Equivalent Input Noise: -128 dBu (Mono Input Channel, Rs: 150 O, GAIN knob: Max)
Residual Input Noise: -102 dBu (STEREO OUT, STEREO master knob: Min)
Crosstalk (1kHz): -78dB
Input Channels:
Mono [MIC/LINE]: 4
Mono/Stereo [MIC/LINE]: 0
Stereo [LINE]: 3
Output Channels:
Stereo Out: 2
Monitor Out: 1
Phones: 1
AUX Send: 1
Group Out: 0
Bus:
Stereo: 1
Group: 0
AUX Send: 1(Incl. FX)
Input Channel Function:
Pad (Mono): 26dB
HPF (Mono, Mono/Stereo): 80 Hz, 12 dbB/oct (Mono)
COMP (Mono): 1-knob compressor (Gain/Threshold/Ratio) Threshold: +22 dBu to -8 dBu, Ratio: 1:1 to 4:1, Output level: 0
dB to 7 dB Attack time: approx. 25 msec, Release time: approx. 300 msec
High EQ: Gain: +15 dB/-15 dB, Frequency: 10 kHz shelving
Mid EQ: Gain: +15 dB/-15 dB, Frequency: Mono 250 Hz - 5 kHz peaking,Stereo 2.5 kHz peaking
Low EQ: Gain: +15 dB/-15 dB, Frequency: 100 Hz shelving
Peak LED (mono): LED turns on when post EQ signal reaches 3 dB below clipping
Level Meter: 2 x 7 -segment LED meter [PEAK, +10, +6, 0, -6, -10, -20 dB]
Internal Digital Effect: 24 programs
Phantom Power Voltage: +48V
Power Requirements: PA-10 Power adapter (included)
Power Consumption: 22.9W
Dimensions (W x H x D): 9.6"x 2.8"x 11.6"
Net Weight: 2.1 kg (4.63 lbs.)
Item Includes:
1x MG10X CV Mixer
1x AC Power Cable (PA10 Power supply with MG10XU)
1x Owner's Manual
Road Tough. Studio Ready.
MG10X CV - Details
Features:
Rugged, Powder-coated steel chassis for superior durability
Discrete Class-A microphone preamps
Built-in SPX digital effects with 24 programs
Switchable +48V Phantom power
Color coded controls offer easy operation
Specifications:
General Specifications:
Frequency Response Input to STEREO OUT: +0.5 dB/-1.5 dB (20 Hz to 48 kHz), refer to the nominal output level @ 1 kHz,
GAIN knob: Min
Total harmonic distortion (THD+N) Input to STEREO OUT: 0.02 % @ +14 dBu (20 Hz to 20 kHz), GAIN knob: Min
Equivalent Input Noise: -128 dBu (Mono Input Channel, Rs: 150 O, GAIN knob: Max)
Residual Input Noise: -102 dBu (STEREO OUT, STEREO master knob: Min)
Crosstalk (1kHz): -78dB
Input Channels:
Mono [MIC/LINE]: 4
Mono/Stereo [MIC/LINE]: 0
Stereo [LINE]: 3
Output Channels:
Stereo Out: 2
Monitor Out: 1
Phones: 1
AUX Send: 1
Group Out: 0
Bus:
Stereo: 1
Group: 0
AUX Send: 1(Incl. FX)
Input Channel Function:
Pad (Mono): 26dB
HPF (Mono, Mono/Stereo): 80 Hz, 12 dbB/oct (Mono)
COMP (Mono): 1-knob compressor (Gain/Threshold/Ratio) Threshold: +22 dBu to -8 dBu, Ratio: 1:1 to 4:1, Output level: 0
dB to 7 dB Attack time: approx. 25 msec, Release time: approx. 300 msec
High EQ: Gain: +15 dB/-15 dB, Frequency: 10 kHz shelving
Mid EQ: Gain: +15 dB/-15 dB, Frequency: Mono 250 Hz - 5 kHz peaking,Stereo 2.5 kHz peaking
Low EQ: Gain: +15 dB/-15 dB, Frequency: 100 Hz shelving
Peak LED (mono): LED turns on when post EQ signal reaches 3 dB below clipping
Level Meter: 2 x 7 -segment LED meter [PEAK, +10, +6, 0, -6, -10, -20 dB]
Internal Digital Effect: 24 programs
Phantom Power Voltage: +48V
Power Requirements: PA-10 Power adapter (included)
Power Consumption: 22.9W
Dimensions (W x H x D): 9.6"x 2.8"x 11.6"
Net Weight: 2.1 kg (4.63 lbs.)
Item Includes:
1x MG10X CV Mixer
1x AC Power Cable (PA10 Power supply with MG10XU)
1x Owner's Manual
