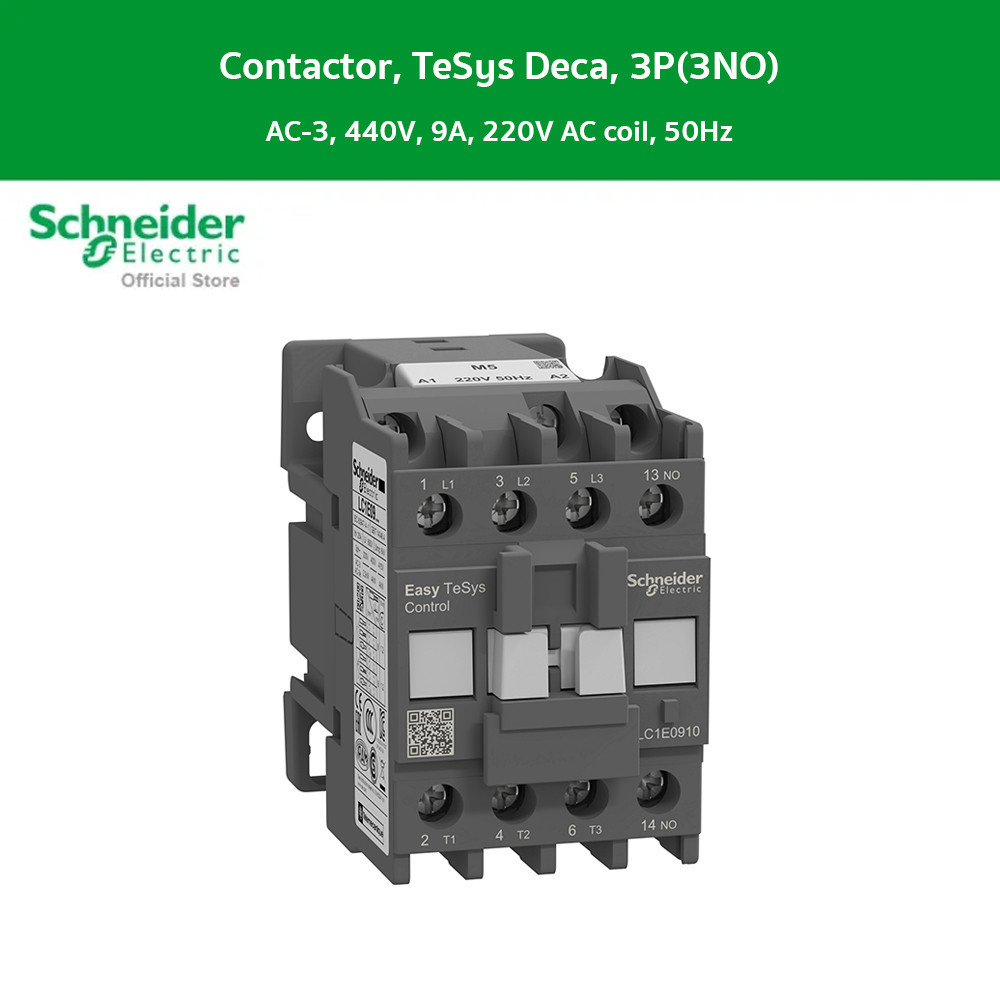

Schneider Electric Contactor,Easy TeSys Control,LC1E,3P,20V AC coil,50Hz,1NO auxiliary contact (LC1E0910M5)

✅ Schneider Contactor รุ่น LC1E0910M5
✅ EasyPact TVS contactor 3P(3 NO) - AC-3 - <= 440 V 9A - 220 V AC coil
✅ แรงดันคอยล์ 220VAC (50Hz)
✅ แมกเนติก คอนแทกเตอร์ Schneider Electric รุ่น EasyPact TVS
✅ ต่อแบบ DOL (Direct On line ต่อตรง)
✅ พิกัดพลังงาน (380-400Vac; AC-3) 4kW
✅ พิกัดกระแส (440vac; AC-3) 9 A
✅ คอนแทคเสริม 1NO

Main
Range : Easy TeSys
range of product : Easy TeSys Control
product or component type : Contactor
Device short name : LC1E

Contactor application
Motor control
Resistive load

Utilisation category
AC-3
AC-3e
AC-1

Poles description : 3P
[Ue] rated operational voltage : Power circuit: <= 690 V AC 50/60 Hz

[Ie] rated operational current
9 A (at <55 °C) at <= 440 V AC AC-3 for power circuit
9 A (at <55 °C) at <= 440 V AC AC-3e for power circuit
25 A (at <55 °C) at <= 440 V AC AC-1 for power circuit

[Uc] control circuit voltage : 220 V AC 50 Hz

Complementary
Motor power kW
2.2 kW at 220...230 V AC 50/60 Hz
4 kW at 380...400 V AC 50/60 Hz
4 kW at 415 V AC 50/60 Hz
4 kW at 440 V AC 50/60 Hz
5.5 kW at 500 V AC 50/60 Hz
5.5 kW at 660...690 V AC 50/60 Hz

Pole contact composition : 3 NO
[Ith] conventional free air thermal current ; 25 A (at 55 °C) for power circuit
Irms rated making capacity : 90 A at 440 V AC for power circuit conforming to IEC 60947-4-1
Rated breaking capacity : 72 A at 440 V for power circuit conforming to IEC 60947

[Icw] rated short-time withstand current
105 A 40 °C - 10 s for power circuit
61 A 40 °C - 60 s for power circuit
30 A 40 °C - 600 s for power circuit

Associated fuse rating
10 A gG at <= 690 V coordination type 1 for control circuit conforming to IEC 60947-5-1
20 A gG at <= 690 V coordination type 1 for power circuit

Average impedance : 2.5 mOhm - Ith 25 A 50 Hz for power circuit

Power dissipation per pole
0.2 W AC-3
1.6 W AC-1

[Ui] rated insulation voltage : 690 V conforming to IEC 60947-4-1
Overvoltage category : III
Pollution degree : 3
[Uimp] rated impulse withstand voltage : 6 kV coil not connected to the power circuit conforming to IEC 60947
Mechanical durability : 10000000 cycles

Electrical durability
1400000 cycles AC-3
150000 cycles AC-1

Control circuit type : AC at 50 Hz

Control circuit voltage limits
0.85...1.1 Uc (-5…55 °C):operational 50 Hz
0.3...0.6 Uc (-5…55 °C):drop-out 50 Hz

Inrush power in VA
95 VA 50 Hz cos phi 0.75 (at 20 °C)
95 VA 60 Hz cos phi 0.75 (at 20 °C)

Hold-in power consumption in VA
8.3 VA 50 Hz cos phi 0.3 (at 20 °C)
8.5 VA 60 Hz cos phi 0.3 (at 20 °C)

Heat dissipation : 2…3 W for control circuit

Operating time
12...22 ms on closing
4...19 ms on opening

Maximum operating rate : 1800 cyc/h 60 °C

Connections - terminals
Power circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible with cable end
Power circuit: screw clamp terminals 2 1…2.5 mm² - cable stiffness: flexible with cable end
Power circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: solid without cable end
Power circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: solid without cable end
Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible without cable end
Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: flexible without cable end
Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible with cable end
Control circuit: screw clamp terminals 2 1…2.5 mm² - cable stiffness: flexible with cable end
Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: solid without cable end
Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: solid without cable end

Tightening torque
Power circuit: 1.2 N.m
Control circuit: 1.2 N.m

Auxiliary contact composition : 1 NO
Minimum switching voltage : 17 V for control circuit
Minimum switching current : 5 mA for control circuit
Insulation resistance : > 10 MOhm for control circuit

Non-overlap time
1.5 ms on energisation guaranteed between NC and NO contact
1.5 ms on de-energisation guaranteed between NC and NO contact

mounting support
Plate
DIN rail

Environment
Standards
IEC 60947-5-1
IEC 60947-4-1
IEC 60947-1

Product certifications
CE
EAC

IP degree of protection : IP2X conforming to IEC 60529
Protective treatment : TH (pollution degree 3) conforming to IEC 60068-2-30

Permissible ambient air temperature around the device
-20…70 °C at Uc
-60…80 °C storage
-5…55 °C operation

Operating altitude : 3000 m without derating
Fire resistance : 850 °C conforming to IEC 60695-2-1

Mechanical robustness
Vibrations contactor open (1.5 Gn, 5...300 Hz)
Vibrations contactor closed (3 Gn, 5...300 Hz)
Shocks contactor open (7 Gn for 11 ms)
Shocks contactor closed (10 Gn for 11 ms)

Height : 74 mm
Width : 45 mm
Depth : 80 mm
