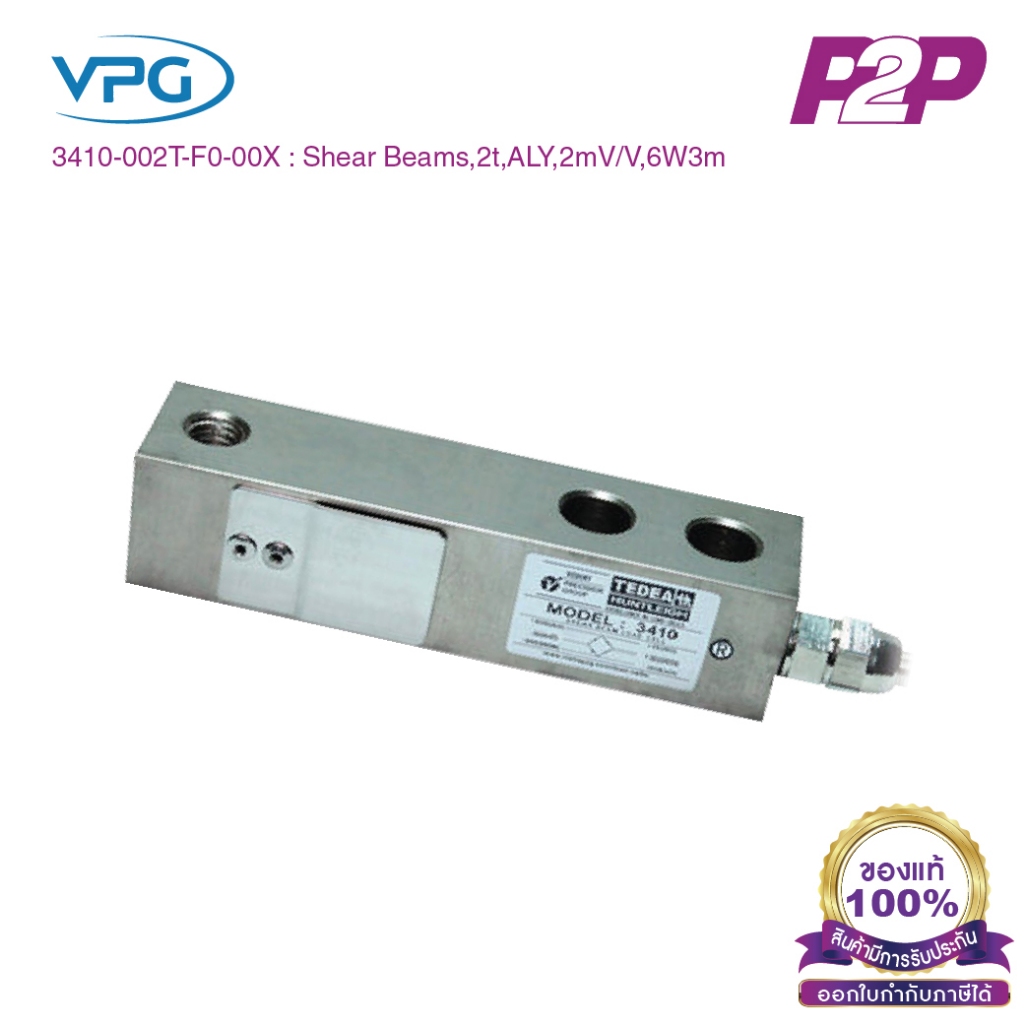

3410-002T-F0-00X : โหลดเซลล์ Capacities 2000 kg IP67 Single Ended Shear Beam - Vishay Loadcell by pik2pak.com
4.0
ขายแล้ว 2 ชิ้น
0 ครั้ง
฿3,988
pik2pak
แบรนด์:
Vishay(วิเชย์)
ซื้อที่ Shopee
คุณจะถูกนำไปยัง Shopee
รายละเอียดสินค้า
3410-002T-F0-00X : โหลดเซลล์ Capacities 2000 kg IP67 Single Ended Shear Beam - Vishay Loadcell by pik2pak.comIP67 protection
Spiral bending support on cable
Optional
EEx ia IIC T6 hazardous area approval
ㆍFM and IECEx approvals available
EDOC option available; product appearance will
differ from the photograph due to coating
APPLICATIONS
Low profile platforms
Pallet truck weighing
Tank and silo weighing
DESCRIPTION
The Model 3410 is a low profile shear beam load cell
designed for high accuracy platform scales, pallet scales
and process weighing applications.
It has high immunity to shock or side loading and is
available in 2 or 3 mV/V sensitivity. Approved to OIML
and NTEP standards. For hazardous environments
this load cell is available with EEx ia IIC T6 level of
European approval.
Spiral bending support on cable
Optional
EEx ia IIC T6 hazardous area approval
ㆍFM and IECEx approvals available
EDOC option available; product appearance will
differ from the photograph due to coating
APPLICATIONS
Low profile platforms
Pallet truck weighing
Tank and silo weighing
DESCRIPTION
The Model 3410 is a low profile shear beam load cell
designed for high accuracy platform scales, pallet scales
and process weighing applications.
It has high immunity to shock or side loading and is
available in 2 or 3 mV/V sensitivity. Approved to OIML
and NTEP standards. For hazardous environments
this load cell is available with EEx ia IIC T6 level of
European approval.
