USB TO TTL/RS485 dual function dual protection USB to 485 module FT232 มีตัวอักษรเล็ก ตัวอักษรใหญ่ครับ

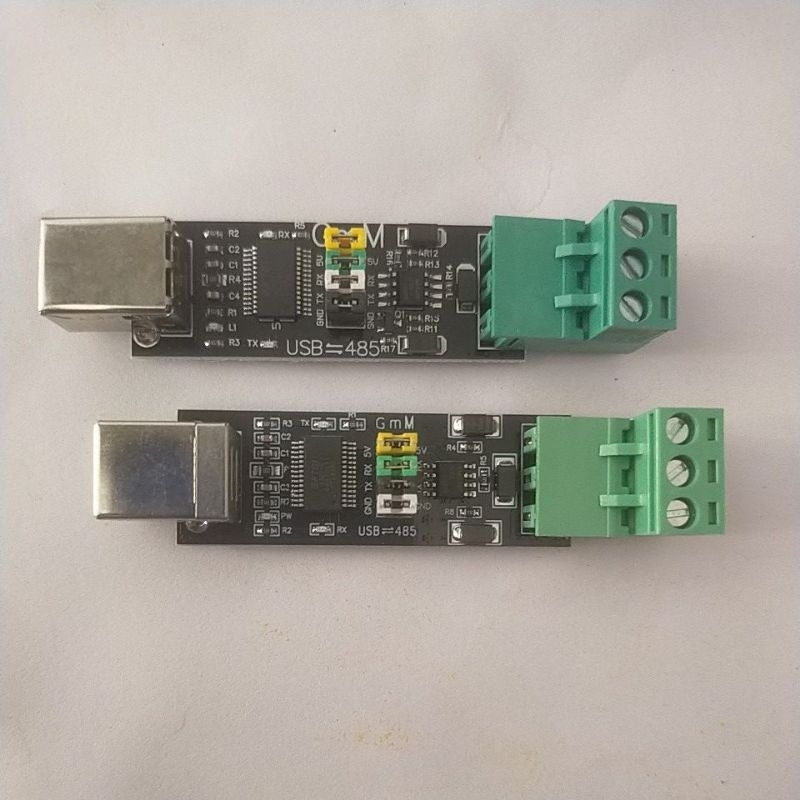

USB TO TTL/RS485 dual function dual protection USB to 485 module

This converter provides two way serial communications signal conversion between the RS485 to and from a personal computer USB port using virtual serial COM port. Self-powered from USB it uses FT232RL+75176 and can have up to 32 devices on the bus.

Specification:

Standard: USB2.0 standard, backward compatible, in line with the standard RS485
Direction control: the use of automatic data flow control, auto distinguish and control data transfer direction
Baud: 300-9216000bps, automatically detecting the serial signal data rate
Load capacity: support multipoint, each converter allows RS485 interface device to connect 32
Interface Protection: TVS tube protection, USB self-recovery protection
Support Windows98/ME/2000/XP/WIN7/Vista, Linux, Mac
Support devices with RS485 interface: surveillance cameras, video capture device, fingerprint attendance machine, PBX, CNC machine, microcontroller, etc.
