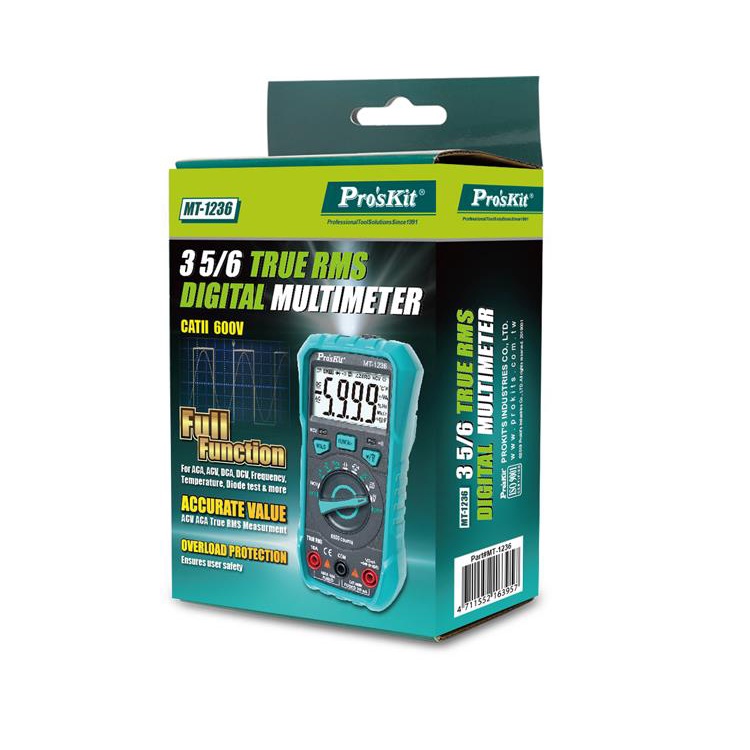

PRO'S KIT Digital Multimeter MT-1236 ครบทุกฟังซ์ชั่น วัดคาปาได้ 100000uf Autorange คุ้มค่ามาก

Want to test electricity or solve automotive & household electrical problems with one meter only? Want more accurate range display as 6000 counts with True RMS measurement? MT-1236 True RMS Digital Multimeter is the ONE you need! This brand new multi-function multimeter features high precision and high performance that measures DC/AC voltage, AC/DC current, resistance, capacitance, frequency & duty cycle, etc. It also comes with NCV detection(non-contact voltage), Temerature test, Led light and more!



Full Function

For ACA, ACV, DCA, DCV, Frequency, Cycle Duty, Diode test and more

Accurate Value

w/ ACV ACA True RMS Measurment

Overload Protection

Ensures user safety

Item#

MT-1236 True RMS Digital Multimeter

LCD Display

3 5/6 5999 Counts

DCV

600mV/6V/60V/600V ±（0.5% +5d）

ACV

600mV/6V/60V/600V ±（1% +4d） TRUE-RMS

DCA

60mA/600mA ±（1.2% +5 d） , 10A±（3.0% +5d）

ACA

60mA/600mA ±（1.5% +5 d） , 10A±（3.0% +5d）TRUE-RMS

Frequency

9.999Hz/99.99Hz/999.9Hz/9.999KHz/99.99KHz/999.9KHz/9.999MHz ±（1.5% +5d）

Duty Cycle

1%~99%±（2.5% +5 d）

ResistanceΩ

600Ω/6k/60k/600k/6M/60MΩ ±（0.8% +5d）

Capacitance

60nF/600nF/6uF/60uF/600uF/6mF ±（4% + 5d）,100mF ±（4% +10d）

Temperature(℃/℉)

-20℃~1000℃±（1% + 3d）

-4℉~2372℉±（1% + 3d）

Continuity Buzzer

≤30Ω , buzzer beeps

Diode Test

Y

NCV Detection

Y

Data Hold

Y

LED Light

Y

LCD Backlight

Y

Analog Bar

Y

Low Battery Indication

Y

Accessories

Test Lead, K-type thermocouple, Manual

Power

1.5V AAA x 3pcs (Not Included)

Dimension

148mm x 79mm x 48mm

Weight

210g(without battery)



Other Function: Auto Power Off
