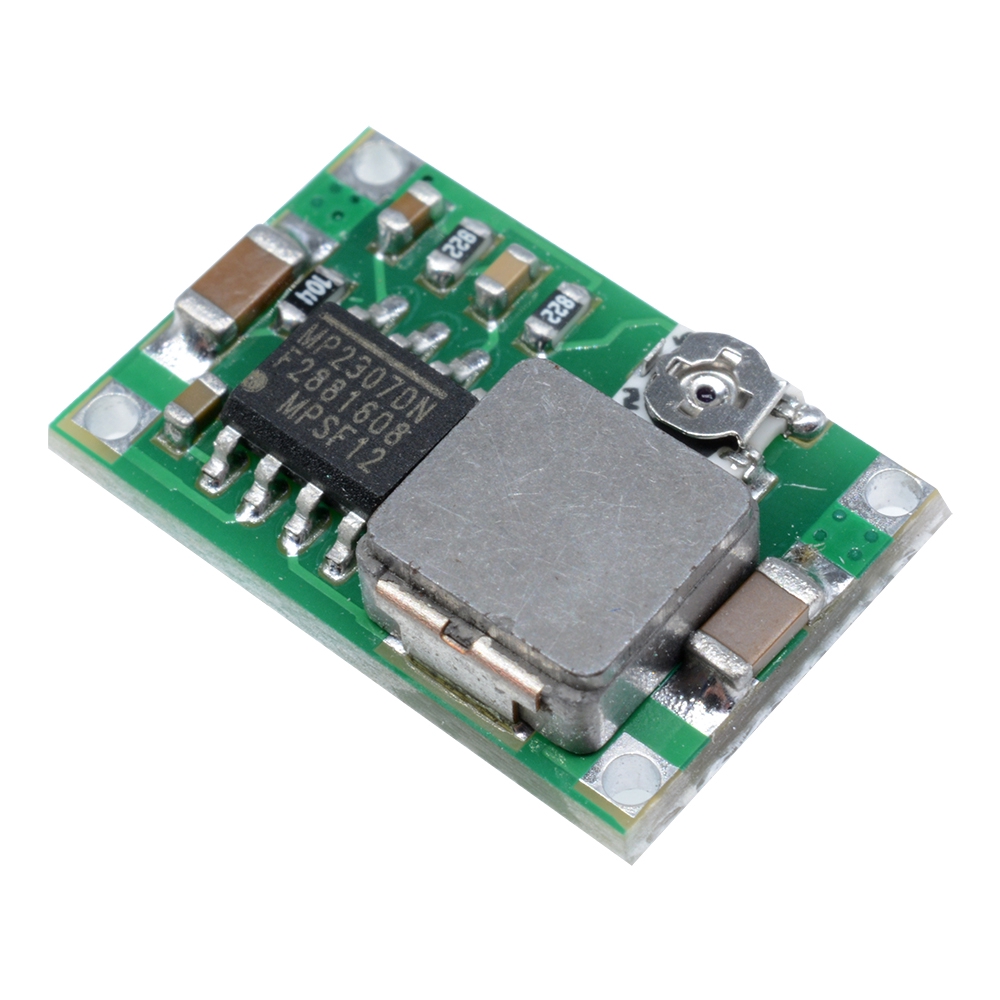

DIYMORE MINI360 โมดูลเพาเวอร์ซัพพลาย 3A DC - DC 3V 5V 16V แปลง Step Down Buck
4.8
ขายแล้ว 1 ชิ้น
0 ครั้ง
฿17
฿45
-62%
Diymore Official Store
แบรนด์:
DIYMORE
ซื้อที่ Shopee
คุณจะถูกนำไปยัง Shopee
รายละเอียดสินค้า
Features:
100% brand new and high quality.
Module Properties: Non-isolated step-down module (BUCK)
Rectification: Synchronous rectification
Input voltage: DC 4.75V-23V
Output voltage: DC 1.0V-17V (Adjustable, Output < Input)
Output current: Rated current 1.8A (3A MAX, can not be prolonged)
Conversion efficiency:96%(highest)
Switching Frequency: 340KHz.
Output ripple:30mV(no-load)
Load regulation:±0.5%
Voltage regulation:±2.5%
Operating Temperature: Industrial (-40℃ ~ +85℃)
Short circuit protection: No(Please do not short-circuit)
Input Reverse protection: No(Can not be reversed)
Dimension: approx.17mm*11mm*3.8mm(L*W*H)/17*11*3.8 Supper mini board
NOTE:This can't be used to step up Voltage. Output voltage is always smaller than input!
Package:
1 x Mini 3A DC-DC Buck Converter Adjustable Step Down Power Supply replace LM2596s
#DIYMORE #Mini #Converter #Step-down #Buck #Power #Supply #Module
100% brand new and high quality.
Module Properties: Non-isolated step-down module (BUCK)
Rectification: Synchronous rectification
Input voltage: DC 4.75V-23V
Output voltage: DC 1.0V-17V (Adjustable, Output < Input)
Output current: Rated current 1.8A (3A MAX, can not be prolonged)
Conversion efficiency:96%(highest)
Switching Frequency: 340KHz.
Output ripple:30mV(no-load)
Load regulation:±0.5%
Voltage regulation:±2.5%
Operating Temperature: Industrial (-40℃ ~ +85℃)
Short circuit protection: No(Please do not short-circuit)
Input Reverse protection: No(Can not be reversed)
Dimension: approx.17mm*11mm*3.8mm(L*W*H)/17*11*3.8 Supper mini board
NOTE:This can't be used to step up Voltage. Output voltage is always smaller than input!
Package:
1 x Mini 3A DC-DC Buck Converter Adjustable Step Down Power Supply replace LM2596s
#DIYMORE #Mini #Converter #Step-down #Buck #Power #Supply #Module
