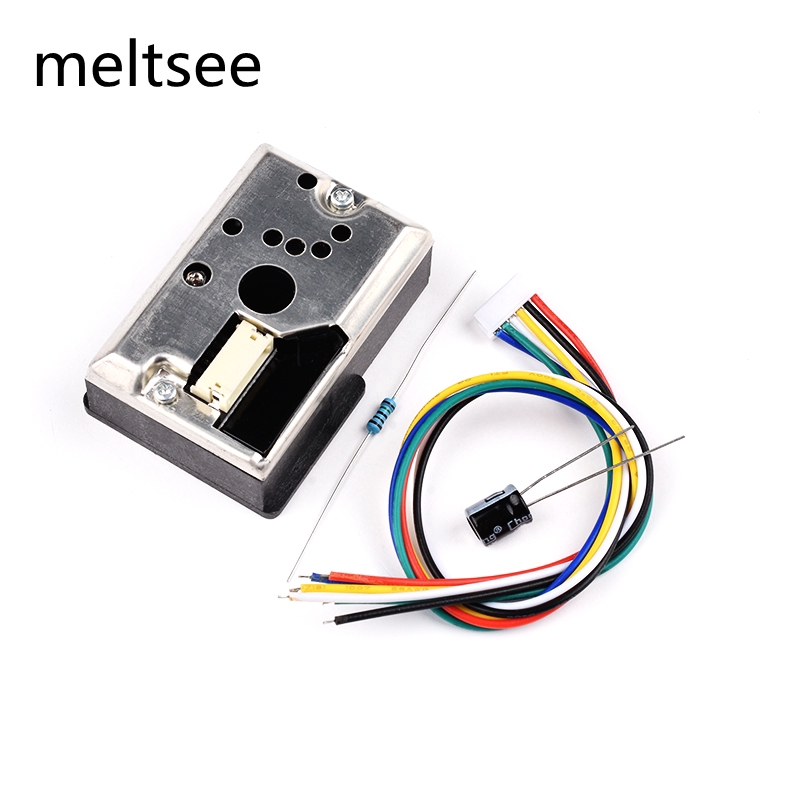

GP2Y1014AU โมดูลเซนเซอร์ตรวจจับฝุ่น ควัน PM2.5 พร้อมสายเคเบิ้ล

GP2Y1014AU Compact Optical Dust Sensor Smoke Particle Sensor With Cable Instead

1. Introduction

Dust Sensor based on Sharp optics works well in detecting very delicate particle, like cigarette smoke, is a commonly used system of air purifier.

This device contains IR LED and photoeletric transistor. Arranging them with across corners can detect the reflected light of dust in the air. It has a ultra-low power consumption(Max at 20mA, Typical at 11mA ), and can be equipped with sensors up to 7VDC. Analog voltage is proportional to measured concentration of dust , and sensitivity is 0.5V/0.1mg/m3.

2. Technological Parameters

Power Voltage: 5-7V

Working Temperature: -10-65 °C

Current Consumption:Max 20mA

Detecting Value of Minimum Particle: 0.8μ

Sensitivity:0.5V/(0.1mg/m3)

Voltage of Cleaning Air: 0.9V(Typical)

Storage Temperature:-20~80°C

Service Life:5 Years

Size:62mm×32mm×20mm

3. Shipping List：
GP2Y1014 dust sensor* 1
Kabel Konektor* 1
150 ohm resistor * 1
16v220uF capacitor * 1
