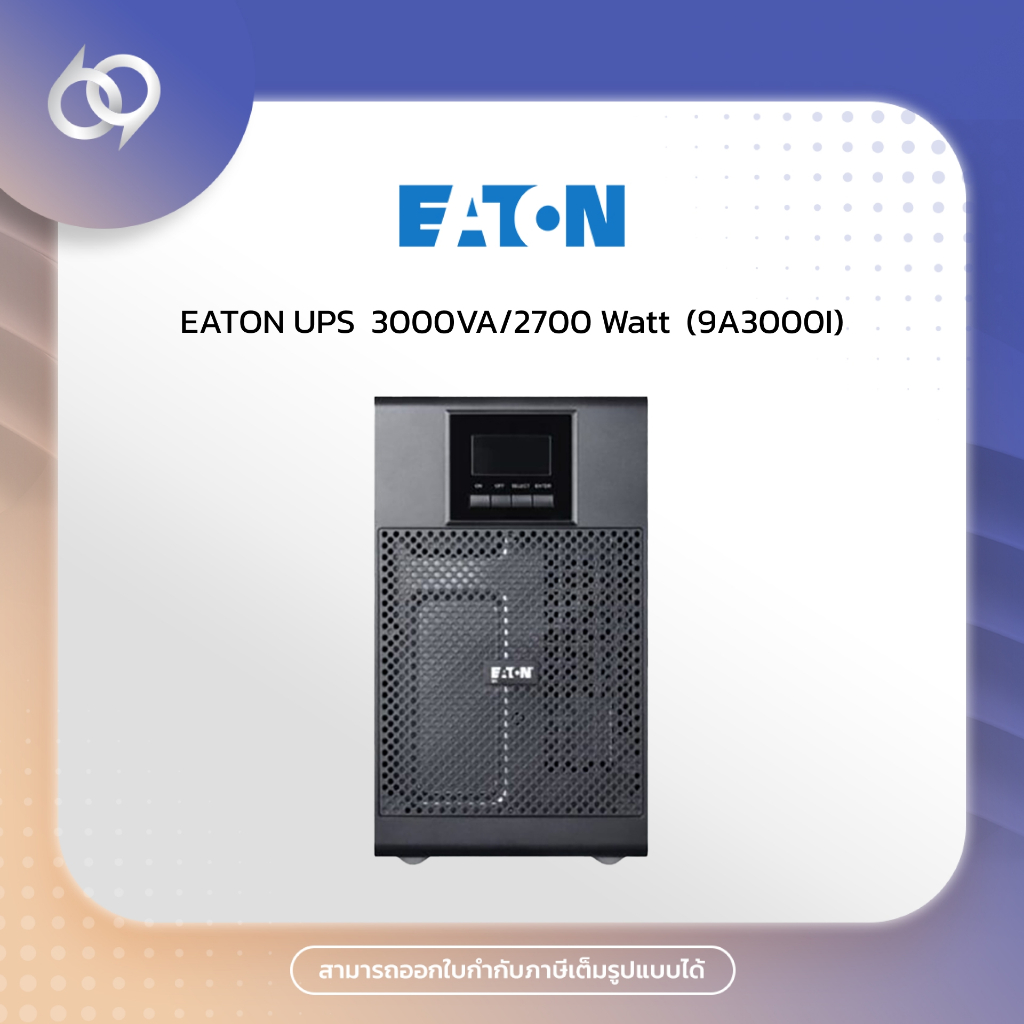

Eaton 9A 3000I 3000VA/2700 Watt Tower (9103-83A46)

TECHNICAL SPECIFICATIONS
• 9A3000i
Rating (kVA/kW)
• 3000VA/2700W
Format
• Tower
Electrical Characteristics
Topology
• Online Double Conversion UPS
Nominal Voltage
• 220/ 230/ 240VAC
Input Voltage Range
• 176-300V without derating. (Up to 100-176V with derating)
Output Voltage / THDv
• 220/230/240VAC, ±1%, THDv <2% linear load, <6% non linear load
Output Frequency / THDI
• 50/60 Hz, THDI 5 % typical, 7% Max
Connections
Input
• IEC C20
Outputs (4)
• (6) IEC 320 C13 + (1)C19
Batteries
Battery Capacity
• 6 x 12V/9Ah
9A @ 100% load
• 4mins
9A +1 EBM @ 100% load
• 18mins
Charging Current
• 1.5A
EBM
• Up to 4 EBM, easy battery replacement for Rack
Physical
IP protection level
• IP20
Dimensions (W x H x D) mm
• 190 x 325 x 400
Weight (kg)
• 23.5
Communication
LCD DISPLAY
• Segment LCD, red colour indication in case of warning & error.
COMMUNICATION
• RS232 PORT / EPO / Battery connector / USB PORT (not HID) / Mini Slot / circuit breaker
Connectivity Card
• NMC G1/ AS400 / CMC G1 modbus
Software
• WinPower
Operating Environment, Standards and Approvals
Temperature range
• 0~40 °C
Relative Humidity
• 0-95%（Non-condensing）
Operating Altitude
• 0~3000m（the load derating 1 % every up 100m@1000~3000m）
Noise levels
• <50dB (ISO 7779&At front 1m distance，without buzzer)
Approvals and marking
• CE, KC, TISI, IEC 62040-1,IEC 62040-2
